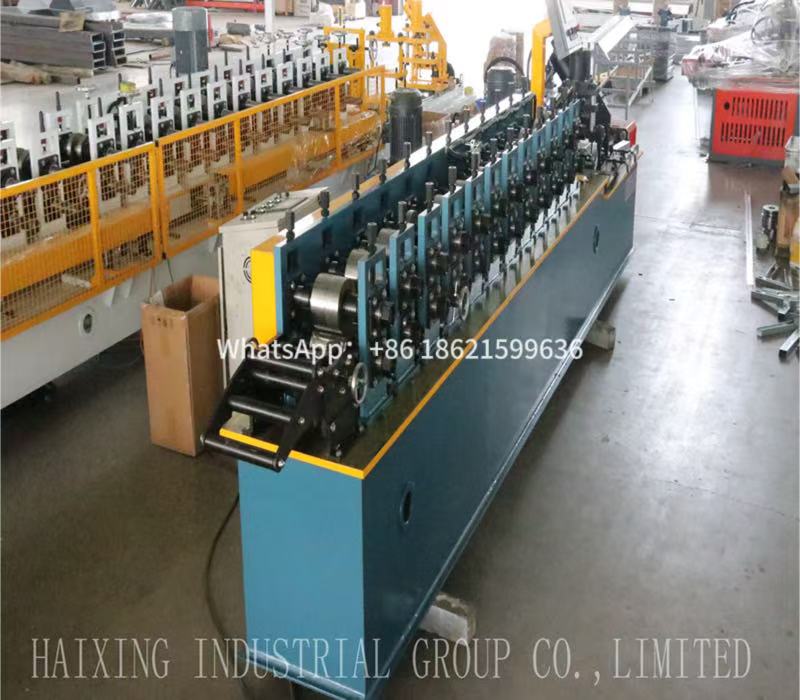

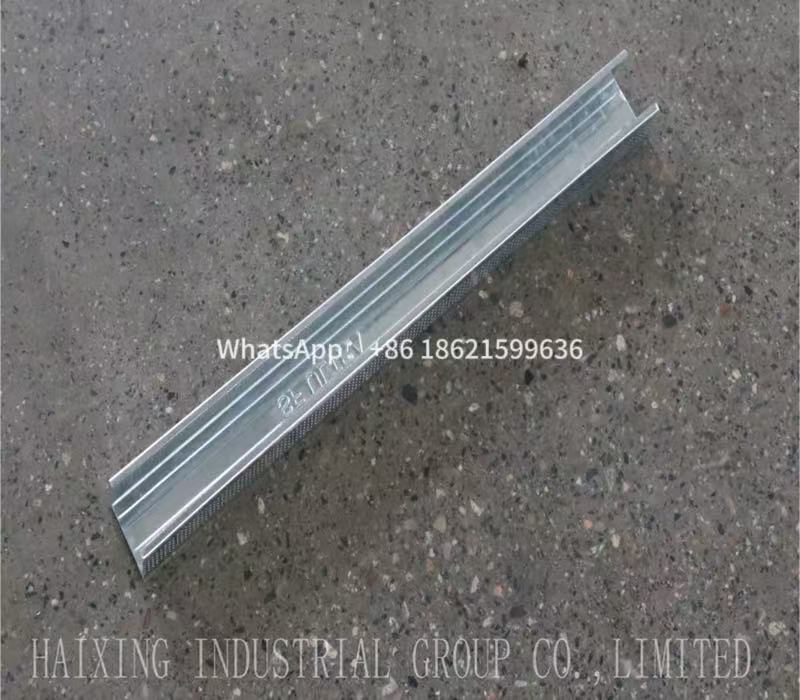

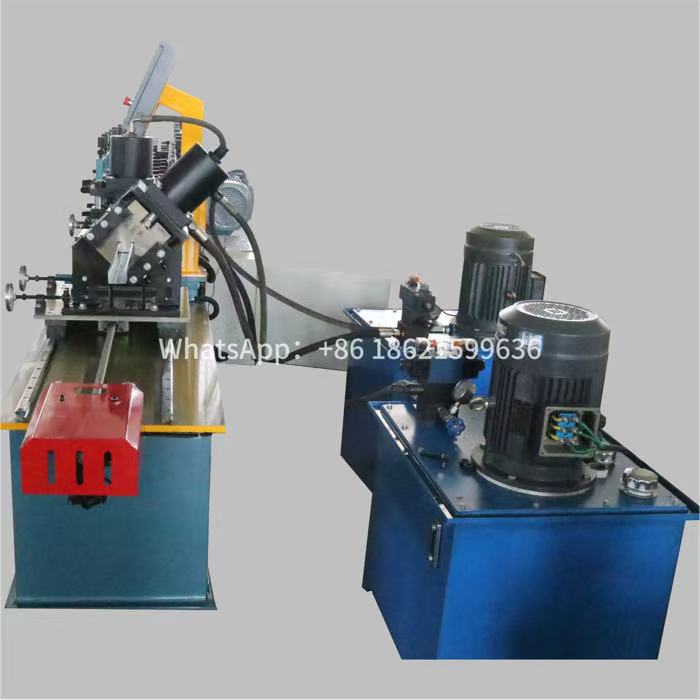

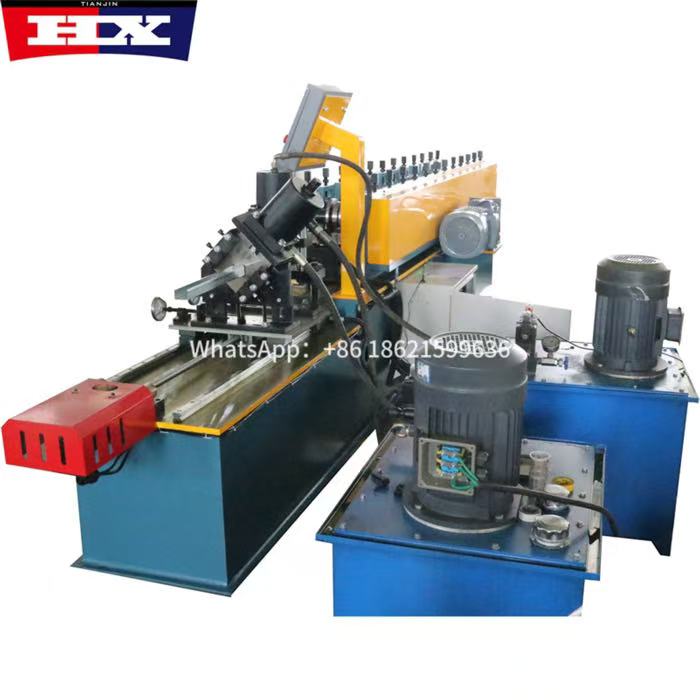

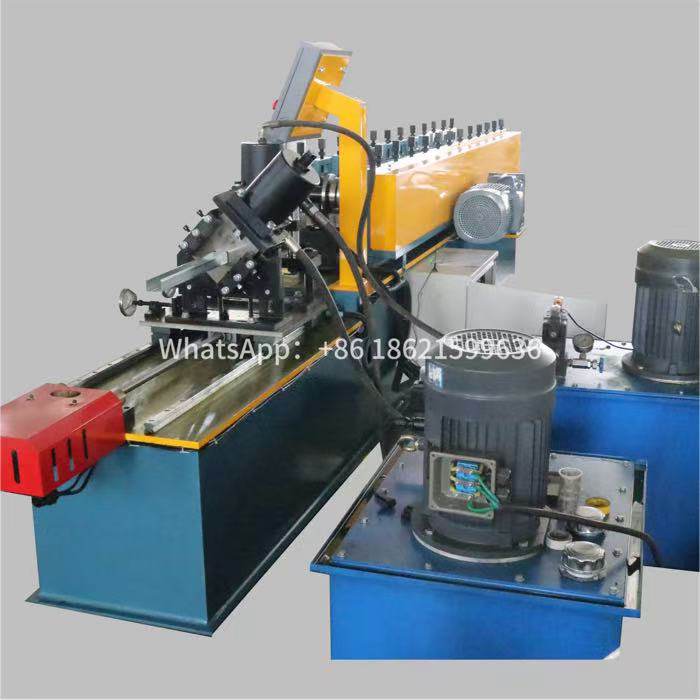

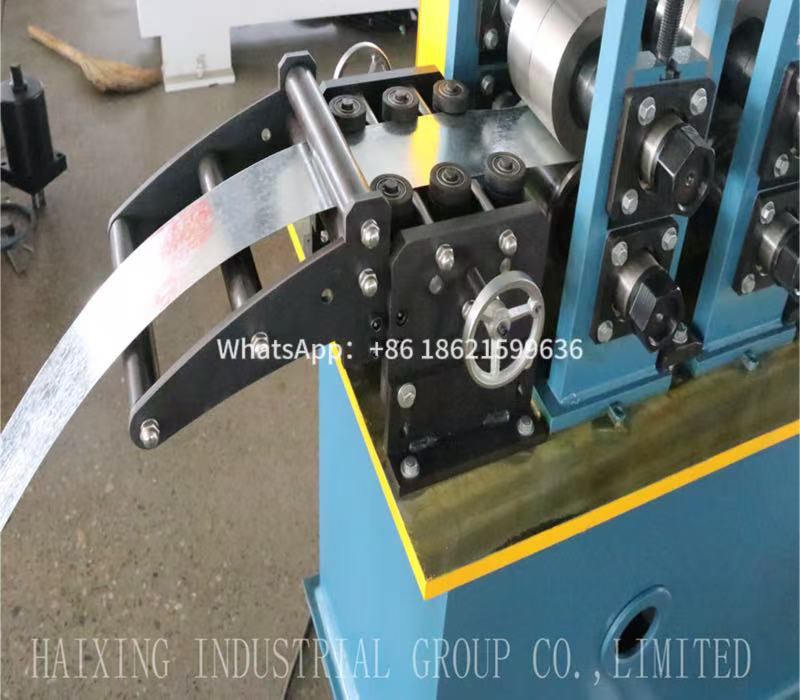

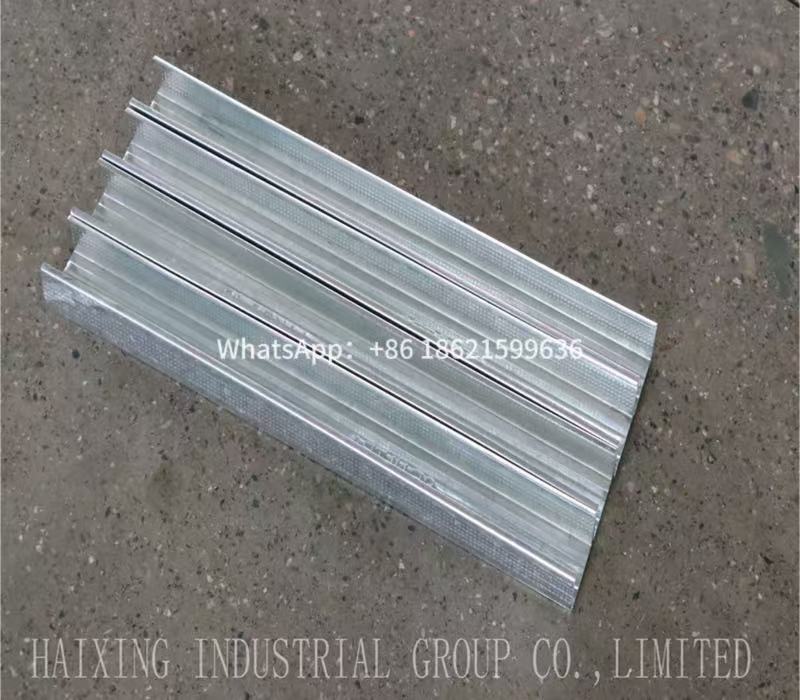

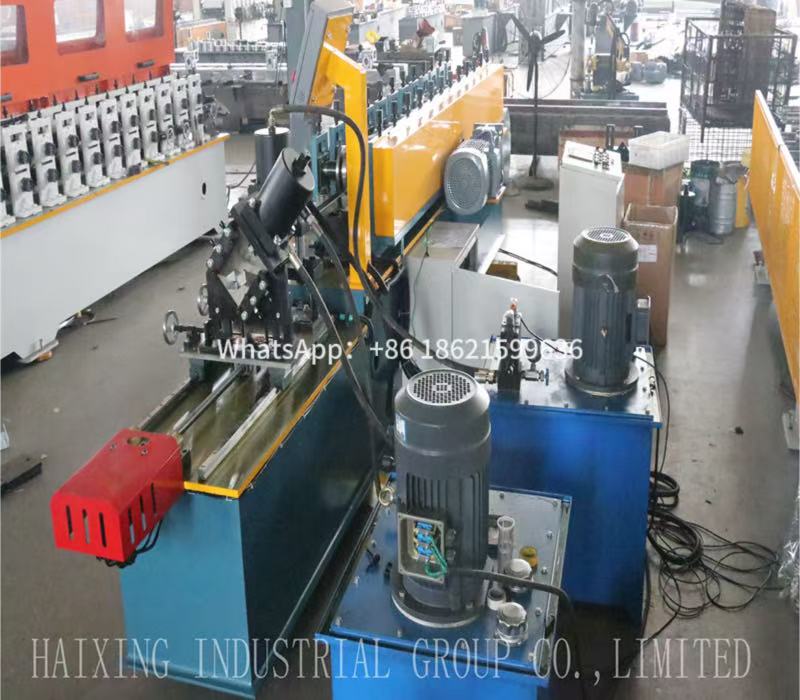

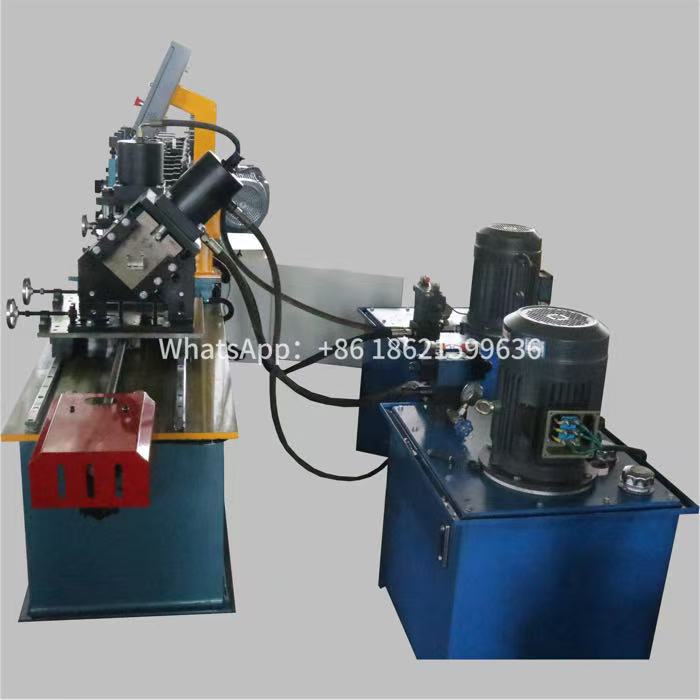

Introducing our advanced C‑shaped stud roll former, a high‑performance machine designed for precision roll forming of steel studs used in drywall and construction framing. This stud roll former integrates servo‑driven feeding and hydraulic cutting systems to ensure consistent profile accuracy and high‑speed production. With quick‑change tooling, this stud roll former can switch between different C‑channel sizes in minutes, significantly reducing downtime.
· High‑speed forming – Up to 25 m/min production speed, boosting output by 40% compared to conventional models.
· Automatic PLC control – User‑friendly touchscreen interface with stored recipes for up to 50 profiles, minimising setup errors.
· Durable roll tooling – Hardened chrome‑plated rolls for extended service life and low maintenance.
· Precision cutting – Hydraulic shear with length tolerance ±0.5 mm, ensuring clean cuts and minimal burrs.
· Energy efficiency – Servo motor system reduces power consumption by 20%.
Benefits include reduced labour costs, increased material yield, and consistent quality for every stud produced. Whether you need standard C‑shaped studs or custom sizes, our stud roll former delivers reliable performance 24/7. Backed by comprehensive after‑sales support and spare parts availability, this stud roll former is the ideal choice for building material manufacturers seeking to enhance productivity and product quality.
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5Kw |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase |
| Forming Speed | 40-50m/min(The speed depends on the shape of the tile and thickness of the material.) |
