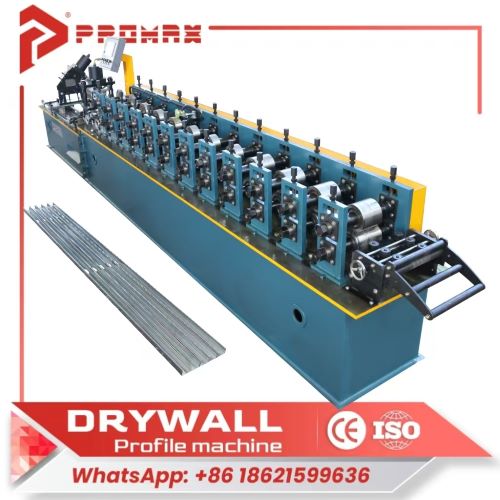

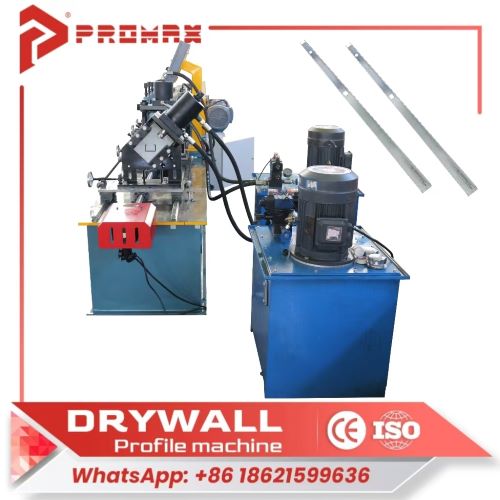

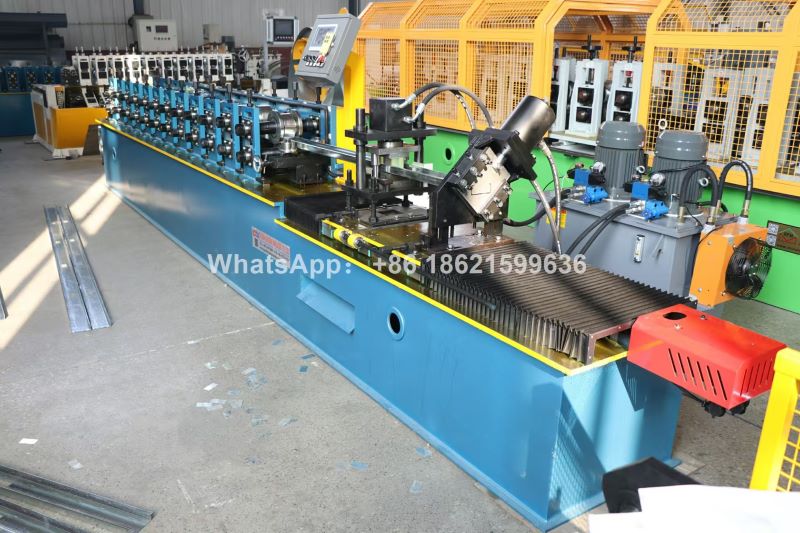

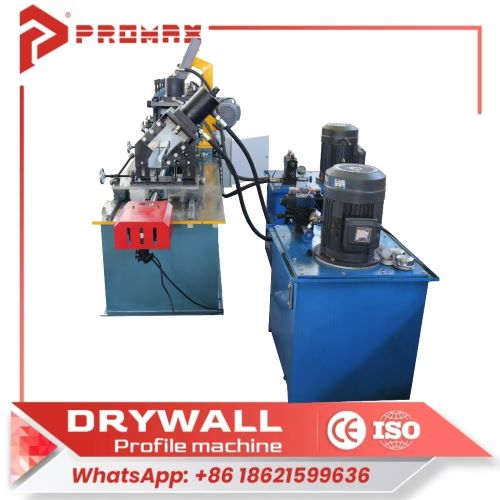

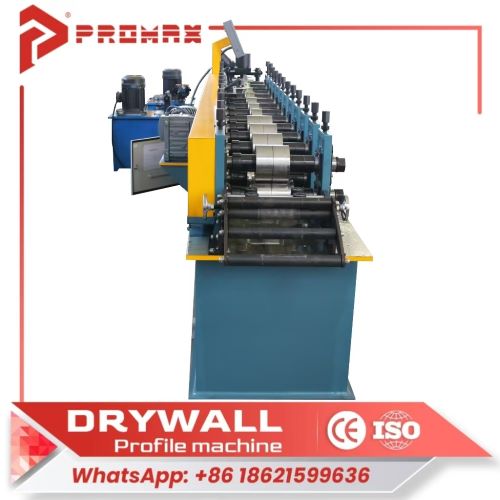

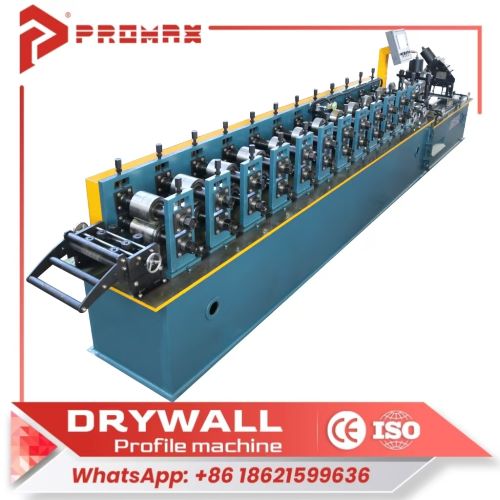

Steel stud forming machine

This fully automatic steel stud forming machine fabricates precise light gauge steel studs and tracks in one continuous process. Fitted with PLC touch control, hardened forming rollers and flying hydraulic cutter, it delivers stable high-speed production with tight dimensional tolerances. Compatible with galvanized steel coils, the line integrates decoiling, leveling, forming and cutting. Low noise, easy operation and minimal maintenance. Widely used for drywall partition, ceiling framing and prefab building construction. Custom sizes and punching functions are available upon request, with complete installation and after-sales technical support.

Steel stud forming machine
Formed Material	GI/GL, PPGI/PPGL
Thickness	0.45-0.9mm
Decoiler	Manual decoiler(will give you as free)
Roller station	12 rows(As your requirement)

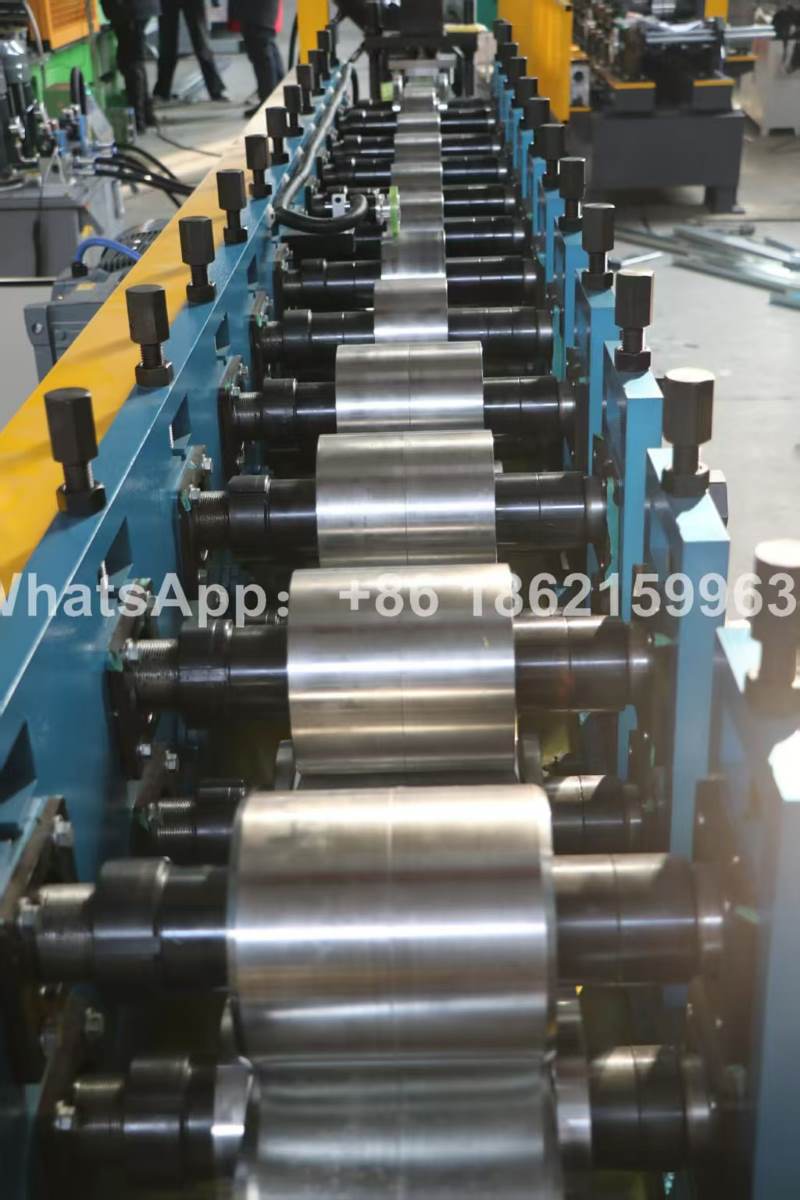

Material of rollers	45#steel, forging with chromium plate 0.05mm

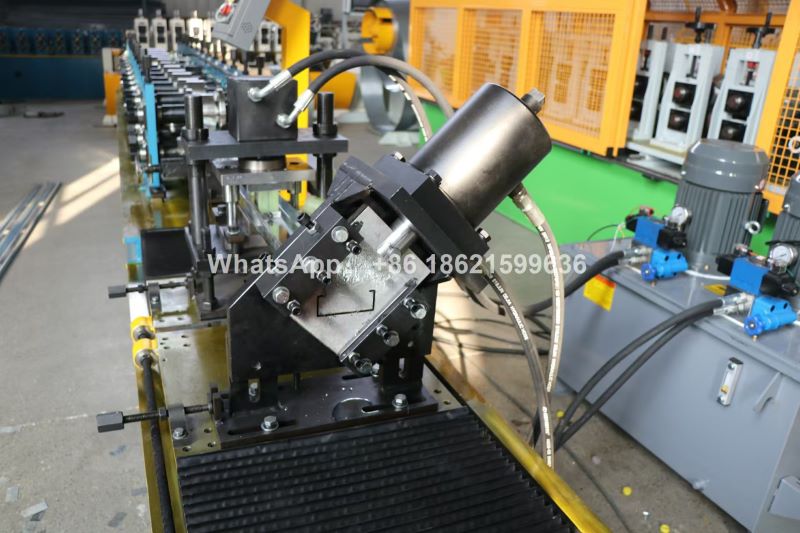

Cutter	Cr12 Mov quenched treatment 58-60℃
Power	7.5+5.5Kw
Control system Language	English, Spanish, etc.(Support multiple languages)
Voltage	380V, 50HZ, 3Phase
Forming Speed	40-50m/min(The speed depends on the shape of the tile and thickness of the material.)

Core Product Advantages：

Intelligent PLC touch screen control: Operators only need to input size parameters; the machine automatically adjusts, with real-time fault alarm and simple troubleshooting.

Ultra-stable molding precision: Dimensional tolerance within ±0.1mm, uniform wall thickness and straight finished studs, no distortion or twisting.

Wide raw material compatibility: Works with hot-dip galvanized steel, pre-painted steel strips with thickness ranging from 0.45mm to 0.9mm.

Why Choose Us

All-in-One Engineering Solutions
From initial concept to final production, we provide comprehensive support tailored to your needs.

Built to Last
Our machines are engineered for durability, delivering reliable performance over years of continuous operation.

Precision You Can Trust
Achieve consistent, micron-level accuracy in every product with our advanced roll forming technology.

Superior Materials
We use only premium-grade components to ensure strength, stability, and longevity.

 Advanced Automation Systems
Equipped with cutting-edge electrical and control systems for enhanced efficiency and precision.

We provide one-stop turnkey service including mechanical design, manufacturing, factory testing, on-site installation, operator training and long-term technical support. Spare parts supply and remote online debugging are available worldwide to minimize production downtime for clients.
