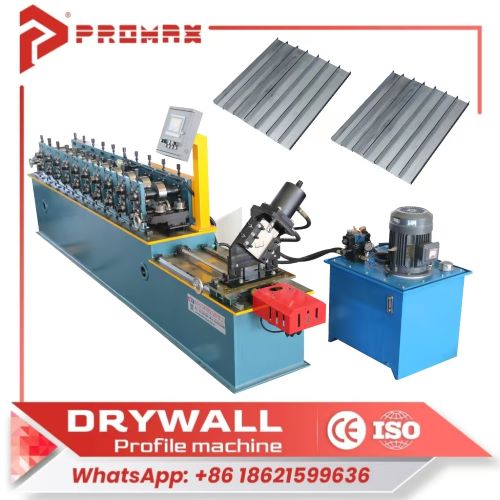

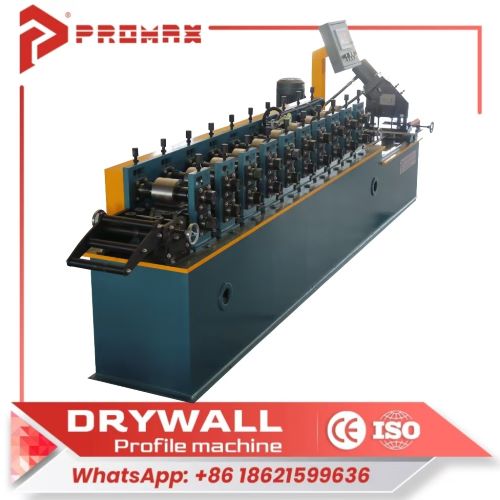

U channel roll forming machine-3

U Channel Roll Forming Machine is a fully integrated, heavy-duty cold roll forming system engineered to continuously convert metal coils into consistent, dimensionally accurate U‑shaped profiles. Designed for mass production and long service life, it delivers stable performance, tight tolerances, and flexible customization for construction, infrastructure, automotive, racking, and steel structure industries.

U channel roll forming machine
Formed Material	GI/GL, PPGI/PPGL
Thickness	0.45-0.9mm
Decoiler	Manual decoiler(will give you as free)
Roller station	10 rows
Diameter of shaft	50mm solid shaft
Material of rollers	45#steel, forging with chromium plate 0.05mm
Cutter	Cr12 Mov quenched treatment 58-60℃
Power	7.5+5.5KW
Control system Language	Chinese, English, Spanish,etc.
Voltage	380V, 50HZ, 3Phase

Core Advantages:

One‑pass continuous forming ensures uniform profile geometry, surface finish, and straightness with minimal material waste.

High rigidity and durability: Heavy‑duty welded frame, hardened alloy rollers, and precision gearboxes guarantee stable running under long‑hour production.

Intelligent control: PLC + touchscreen HMI enables easy parameter setting, production monitoring, fault diagnosis, and quick size changeover.

working flow:

Hydraulic Decoiler: Loads and feeds coils smoothly with tension control

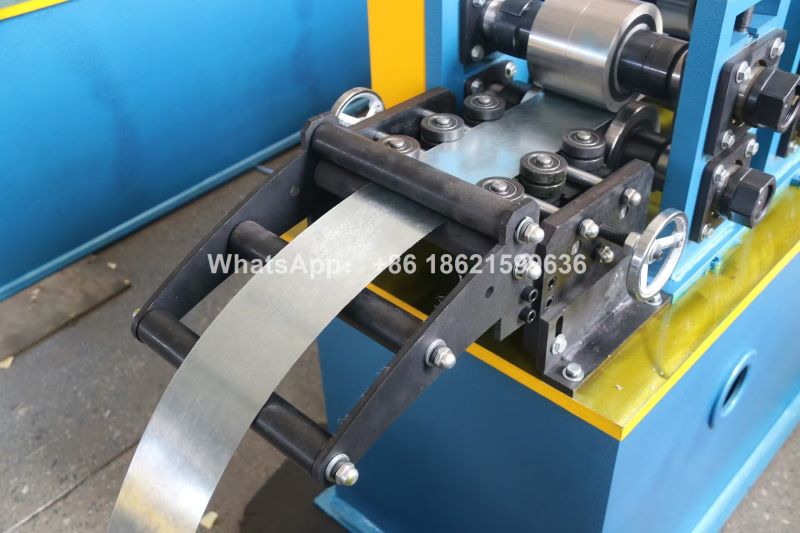

Feeding Unit: Corrects coil flatness and ensures precise feeding length.

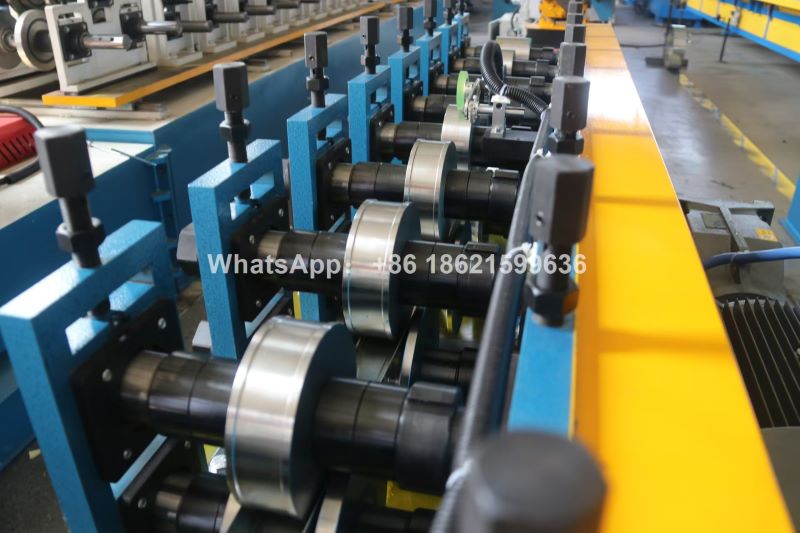

Roll Forming Stand: Multi‑stand progressive roller dies gradually form the U channel.

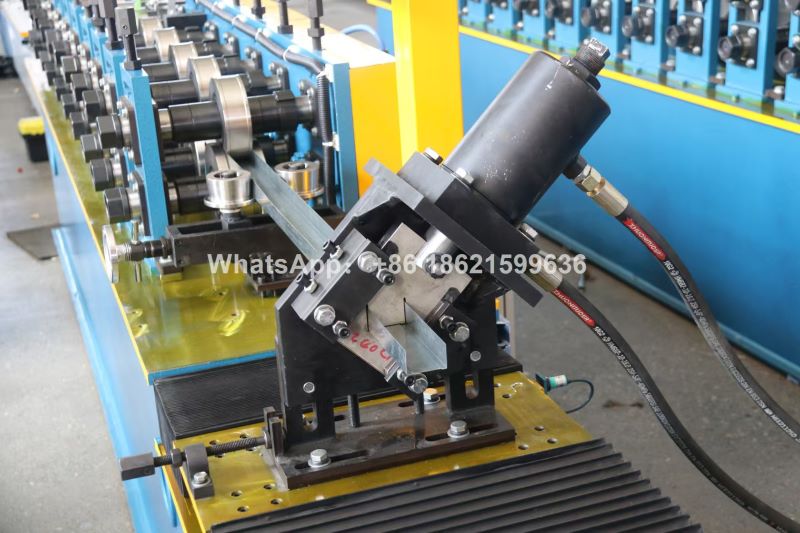

Hydraulic Cutting: Cuts profiles to preset length without stopping the line.

Runout Table: Collects finished products neatly for packaging or further processing.
