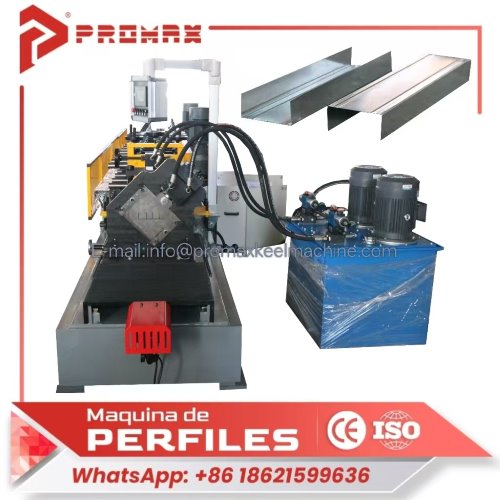

Gypsum channel roll forming machine interchange

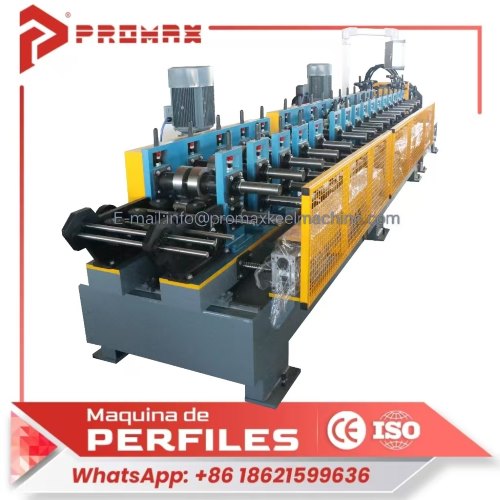

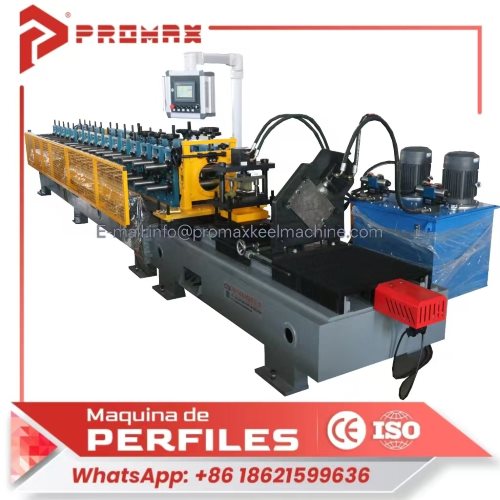

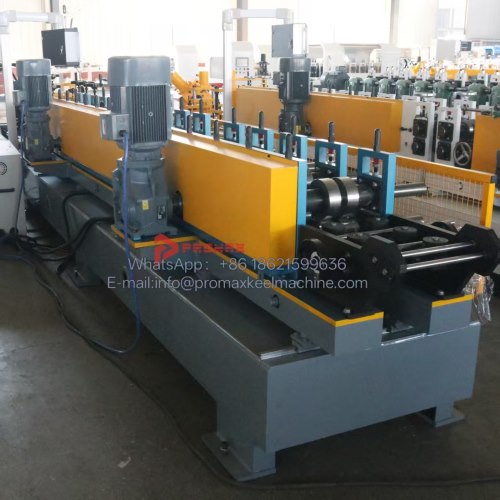

Gypsum Channel Roll Forming Machine with Interchange System is a versatile, high-performance roll forming solution designed specifically for manufacturers who need to produce multiple profiles—including C-studs, U-tracks, and custom gypsum channel shapes—on a single machine. Featuring an innovative interchange mechanism, this equipment allows for rapid profile changeovers without the need for expensive additional machinery, significantly enhancing production flexibility and efficiency. Whether you are a drywall contractor, a metal framing manufacturer, or a construction material supplier, this machine offers the adaptability and precision required to meet diverse project demands with minimal downtime and maximum output.

Gypsum channel roll forming machine interchange
Formed Material	GI/GL, PPGI/PPGL
Thickness	0.45-0.9mm
Decoiler	Manual decoiler(will give you as free)
Roller station	10 rows
Diameter of shaft	50mm solid shaft
Material of rollers	45#steel, forging with chromium plate 0.05mm
Cutter	Cr12 Mov quenched treatment 58-60℃
Power	7.5+5.5KW
Control system Language	Chinese, English, Spanish,etc.
Voltage	380V, 50HZ, 3Phase

Key Features：

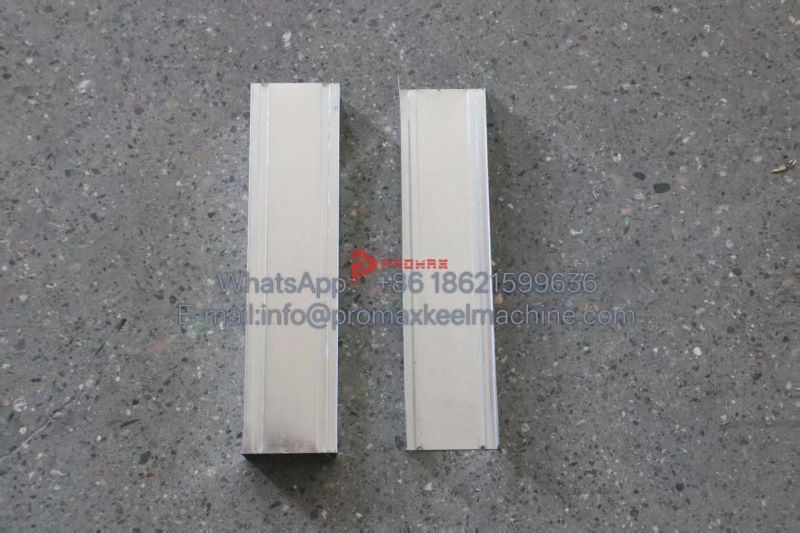

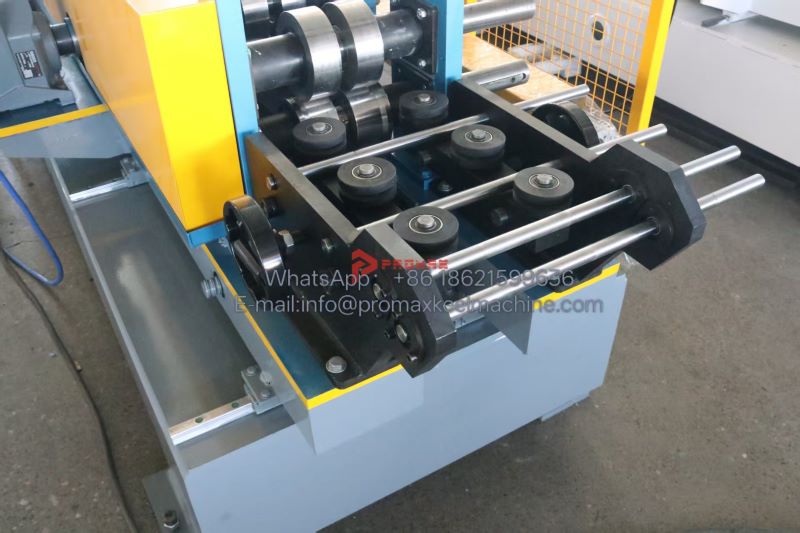

Interchangeable Roller System – Quick-swap roller cartridges or adjustable forming stations allow seamless transition between C-stud, U-track, and custom gypsum channel profiles with minimal effort.

High-Speed Production – Achieves forming speeds up to 40-50 meters per minute, ensuring high output without compromising quality.

Precision Engineering – High-grade Cr12 bearing steel rollers accurate profile dimensions, consistent quality, and extended tool life.

Intelligent PLC Control – User-friendly touchscreen interface enables easy parameter adjustment, real-time monitoring, and automatic fault detection for streamlined operation.

Heavy-Duty Construction – Robust steel frame and durable components guarantee stable, reliable performance even under continuous 24/7 production schedules.

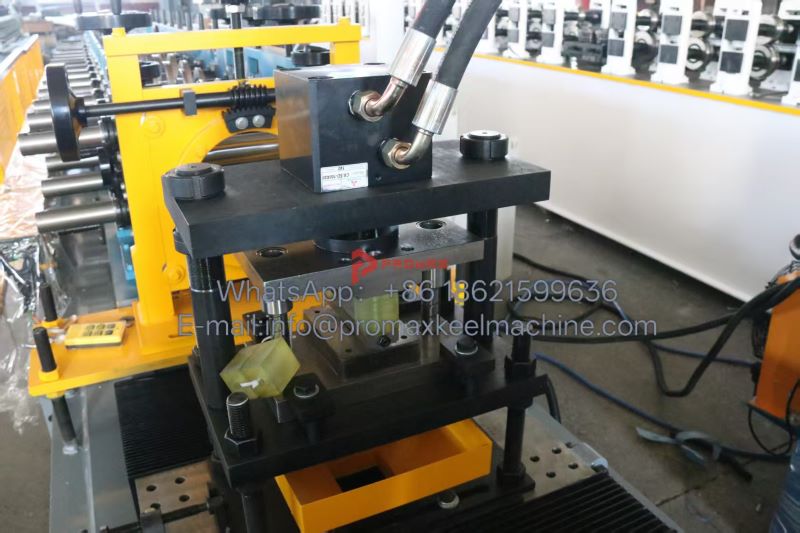

Integrated Cutting System – Hydraulic or servo cutting ensures precise, burr-free cuts with length accuracy.

Low Maintenance Design – Simplified structure with easily accessible wear parts reduces maintenance frequency and operational costs.

Compact Footprint – Space-saving design makes it ideal for workshops with limited floor space.
