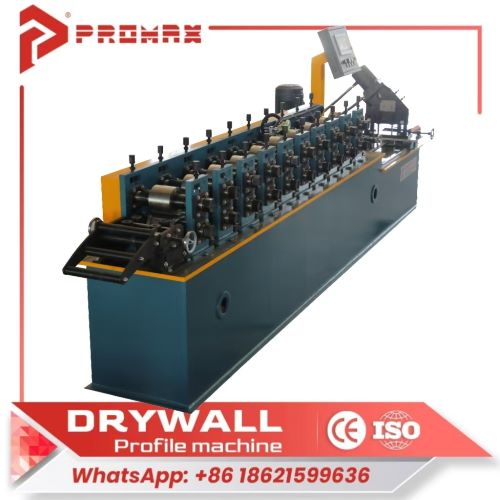

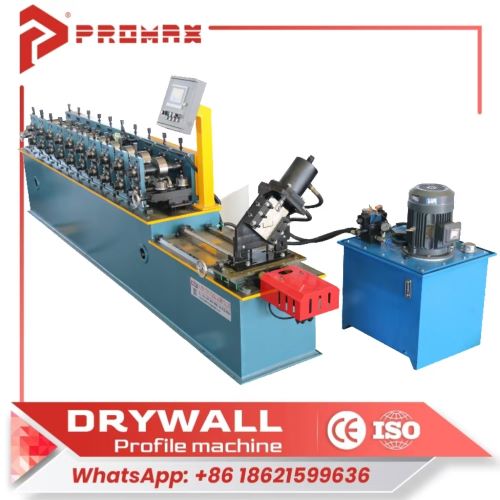

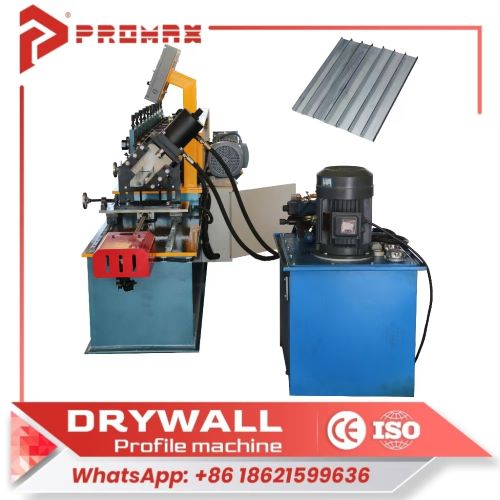

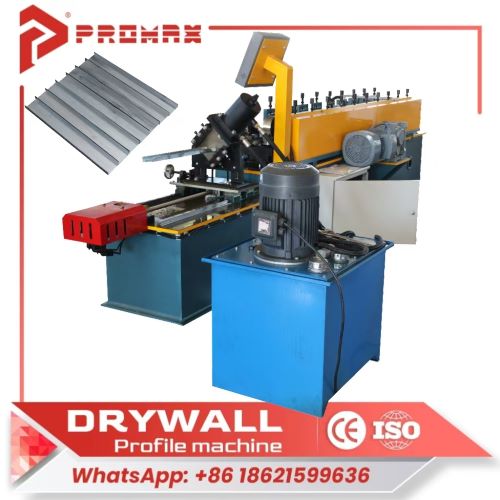

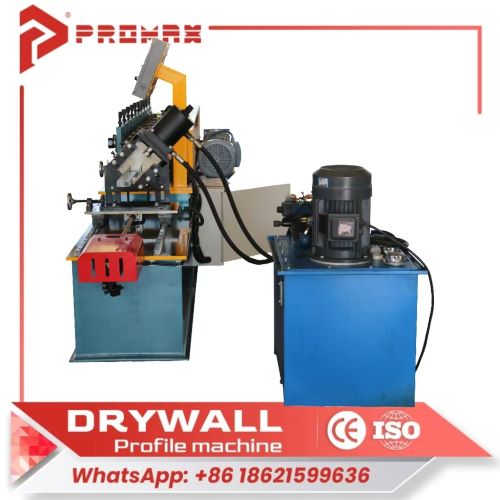

Track roll forming machine-2

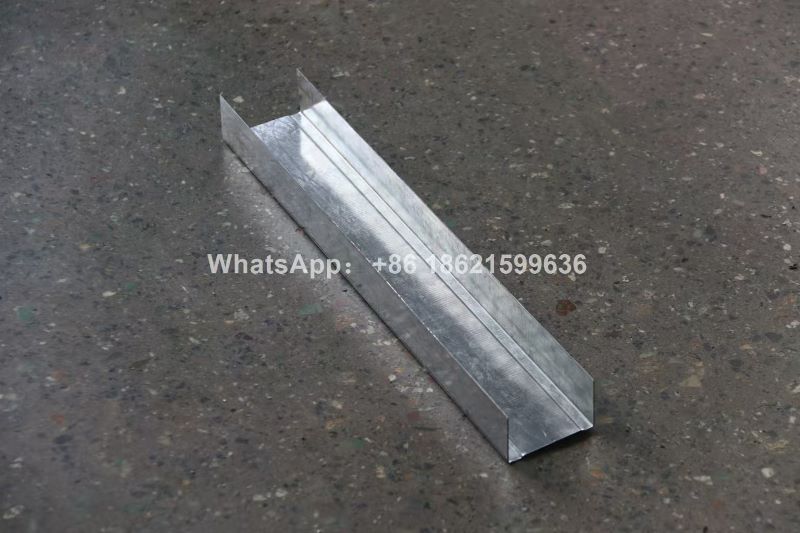

Our Track Roll Forming Machine is a high-performance industrial solution designed specifically for producing U-track and C-channel profiles used in drywall partition, ceiling suspension, and structural metal framing systems. Built with heavy-duty construction and advanced roll forming technology, this machine delivers consistent precision, high output, and long-term reliability for manufacturers and contractors worldwide.

Key Features：

High-Speed Production – Achieves highly forming speed, significantly boosting daily output.

Precision Roller Design – High-grade Cr12 steel rollers accurate profile dimensions and smooth surface finish.

User-Friendly PLC Control – Equipped with an intelligent PLC system and touchscreen interface for easy operation and real-time monitoring.

Quick Changeover – Adjustable roller stations allow fast switching between different profile sizes with minimal downtime.

Durable Construction – Robust frame and wear-resistant components guarantee stable performance even under continuous heavy-duty operation.

Automatic Cutting – Integrated hydraulic cutting system ensures precise length cutting with burr-free edges.

Low Maintenance – Simplified design with easily accessible parts reduces maintenance time and operating costs.

U channel roll forming machine
Formed Material	GI/GL, PPGI/PPGL
Thickness	0.45-0.9mm
Decoiler	Manual decoiler(will give you as free)
Roller station	10 rows
Diameter of shaft	50mm solid shaft
Material of rollers	45#steel, forging with chromium plate 0.05mm
Cutter	Cr12 Mov quenched treatment 58-60℃
Power	7.5+5.5KW
Control system Language	Chinese, English, Spanish,etc.
Voltage	380V, 50HZ, 3Phase

Applications：

Drywall partition framing

Ceiling suspension systems

Metal stud wall construction

Industrial building structures

Prefabricated housing components

working flow:

Hydraulic Decoiler: Loads and feeds coils smoothly with tension control

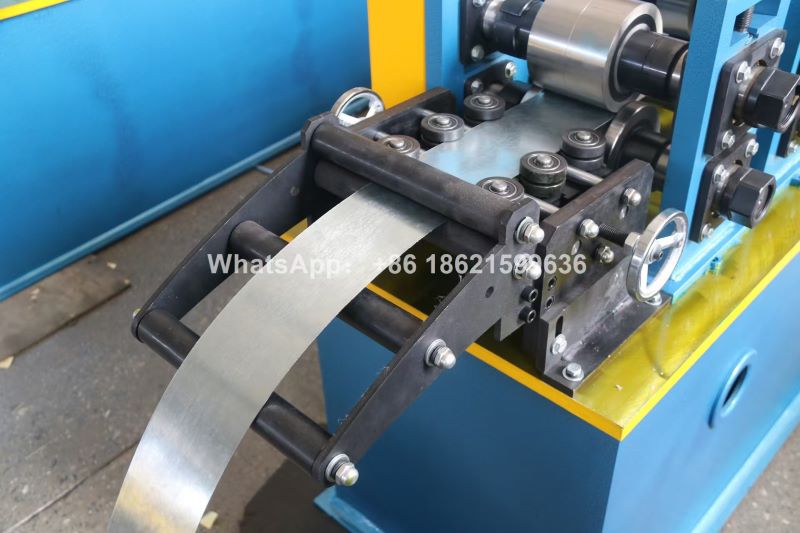

Feeding Unit: Corrects coil flatness and ensures precise feeding length.

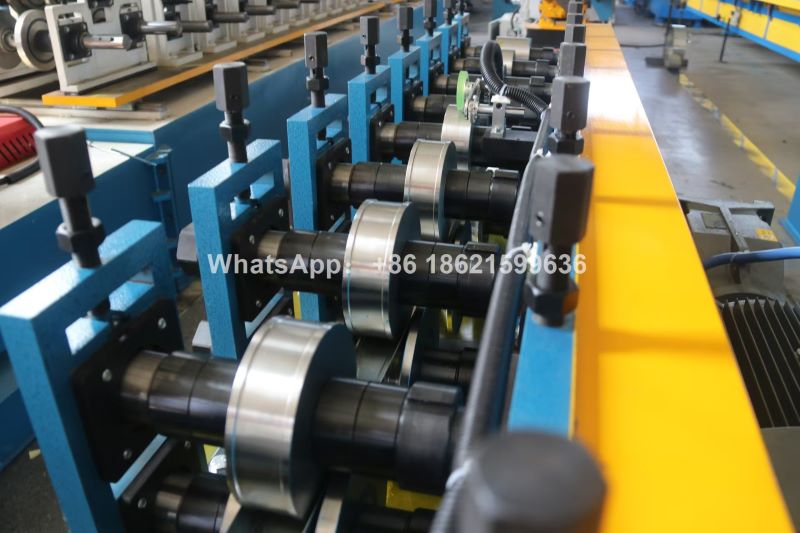

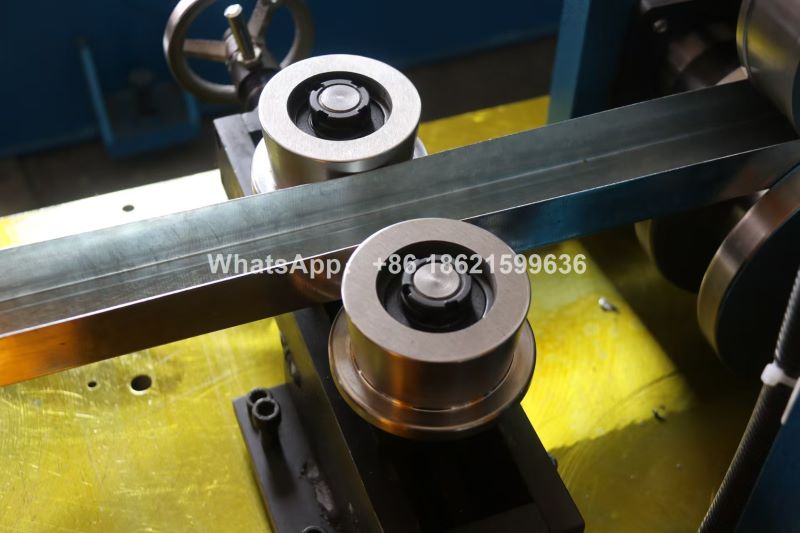

Roll Forming Stand: Multi‑stand progressive roller dies gradually form the U channel.

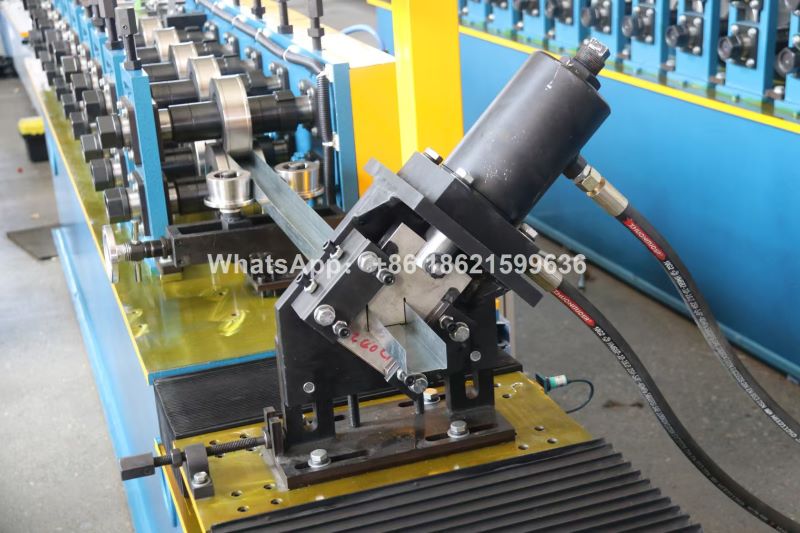

Hydraulic Cutting: Cuts profiles to preset length without stopping the line.

Runout Table: Collects finished products neatly for packaging or further processing.

Why Choose Us

All-in-One Engineering Solutions
From initial concept to final production, we provide comprehensive support tailored to your needs.

Built to Last
Our machines are engineered for durability, delivering reliable performance over years of continuous operation.

Precision You Can Trust
Achieve consistent, micron-level accuracy in every product with our advanced roll forming technology.

Superior Materials
We use only premium-grade components to ensure strength, stability, and longevity.

 Advanced Automation Systems
Equipped with cutting-edge electrical and control systems for enhanced efficiency and precision.

About Us

Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
