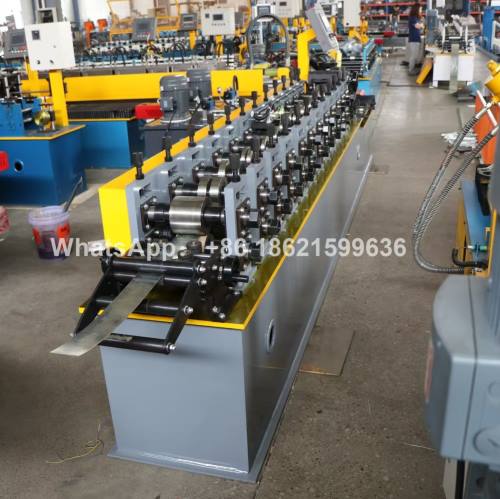

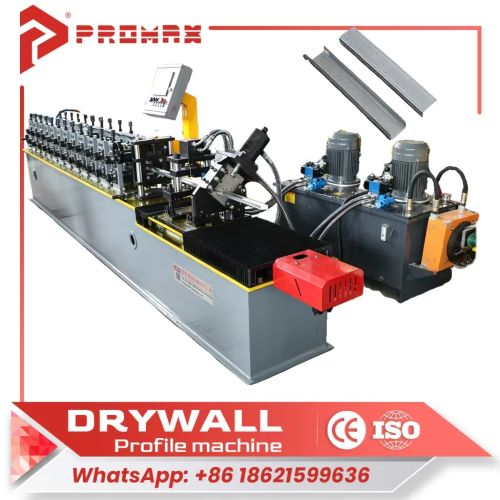

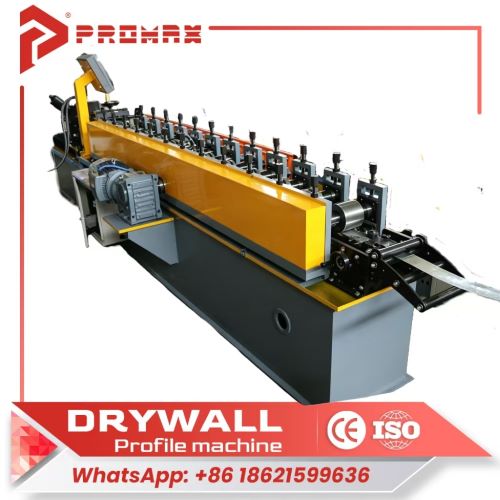

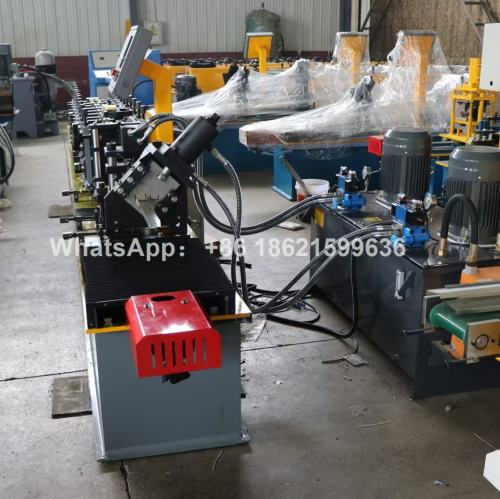

Profile roll forming machine of U channel

Our Profile Roll Forming Machine of U Channel is a high-performance industrial system designed to produce precision U-channel profiles used extensively in construction, infrastructure, and manufacturing applications. Built with robust engineering, advanced control technology, and flexible configuration options, this machine delivers consistent quality, high output, and long-term reliability for manufacturers worldwide. Whether you are producing U-channels for drywall framing, structural support, solar mounting systems, or custom industrial applications, our machine offers the precision, speed, and durability to meet your production goals efficiently and cost-effectively.

Profile roll forming machine of U channel
Formed Material	GI/GL, PPGI/PPGL
Thickness	0.45-0.9mm
Decoiler	Manual decoiler(will give you as free)

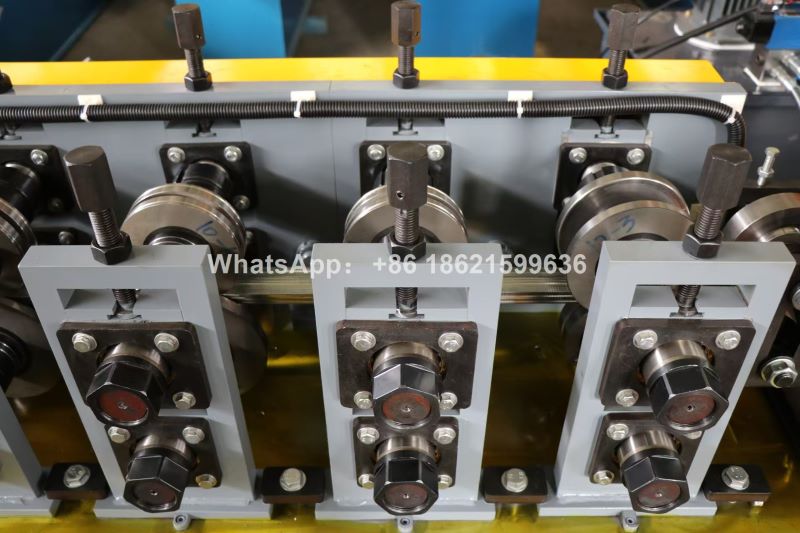

Roller station	10 rows
Diameter of shaft	50mm solid shaft
Material of rollers	45#steel, forging with chromium plate 0.05mm

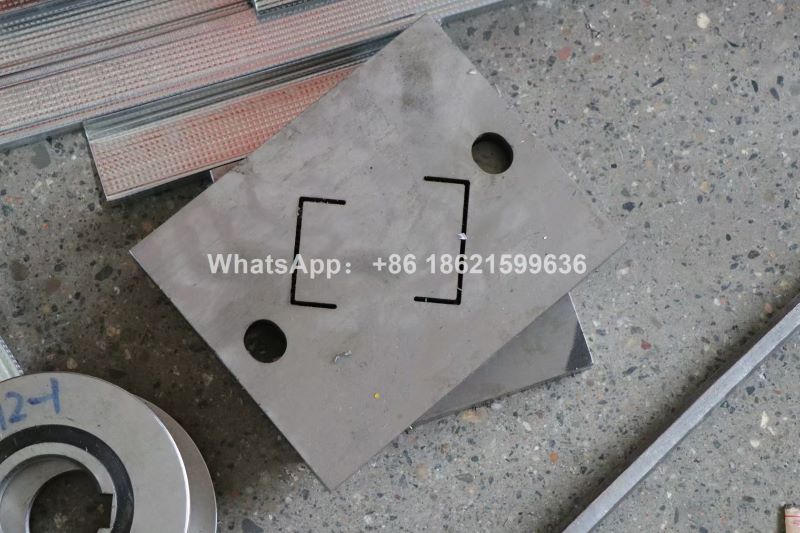

Cutter	Cr12 Mov quenched treatment 58-60℃
Power	7.5+5.5KW
Control system Language	Chinese, English, Spanish,etc.
Voltage	380V, 50HZ, 3Phase

Key Features：

High-Speed Production – Achieves forming speeds up to 40-50 meters per minute, significantly boosting daily output and enabling large-volume order fulfillment.

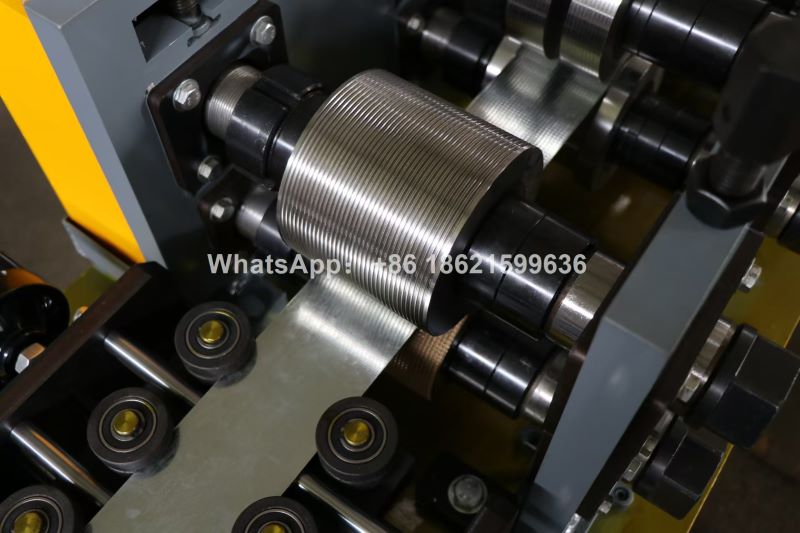

Precision Roll Forming – High-grade Cr12 bearing steel rollers ensure accurate profile dimensions, smooth surface finish, and extended roller service life.

Advanced PLC Control – User-friendly touchscreen interface with intelligent PLC system allows easy parameter adjustments, real-time production monitoring, and automated fault diagnosis for streamlined operation.

Versatile Profile Capability – Designed specifically for U-channel production but also adaptable to related profiles, including C-studs and custom shapes with quick changeover.

Heavy-Duty Construction – Sturdy steel frame and wear-resistant components guarantee stable performance even under continuous 24/7 operation.

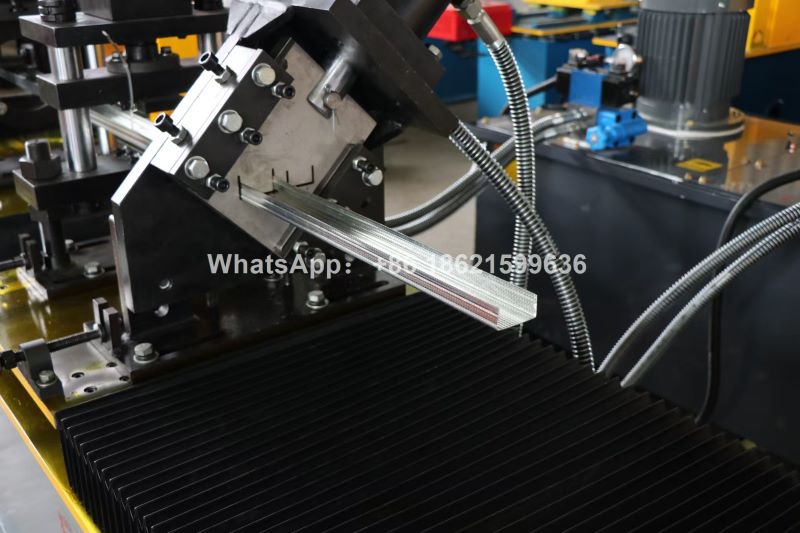

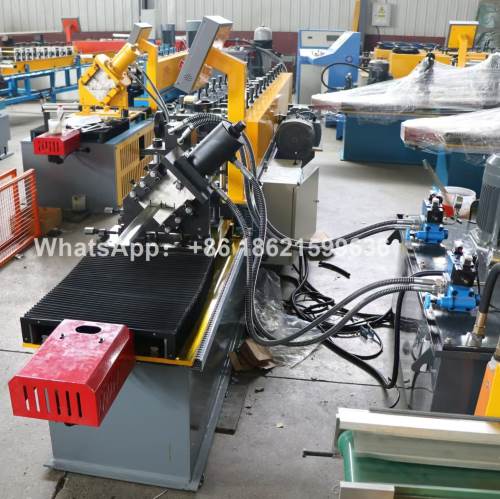

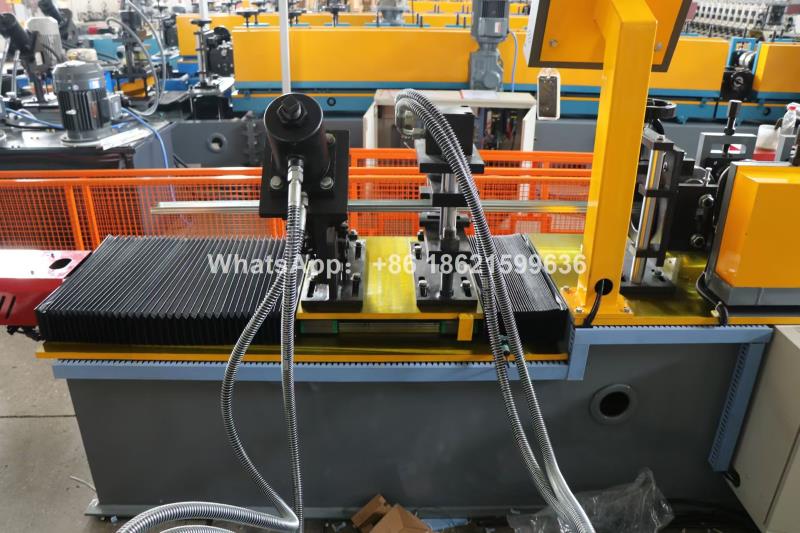

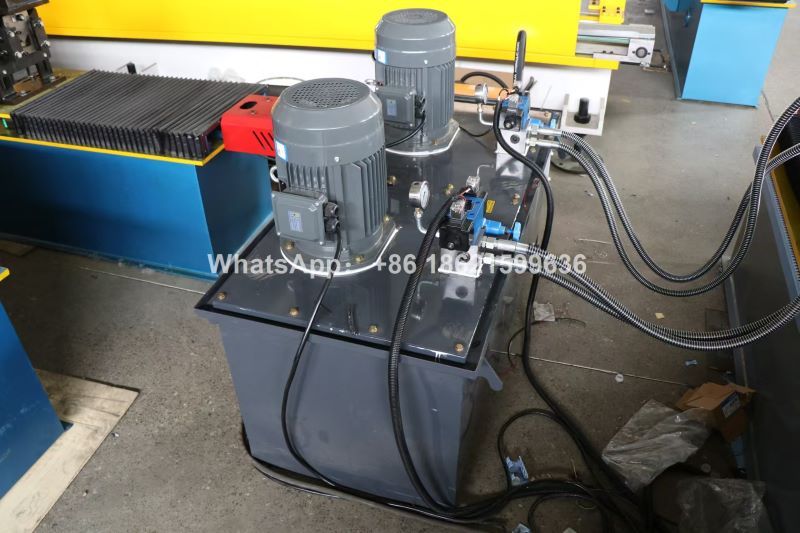

Integrated Cutting System – Hydraulic or servo cutting ensures precise, burr-free cuts with accurate length control.

Automatic Stacking (Optional) – Optional stacking system collects finished products automatically, reducing labor requirements and improving overall production efficiency.

Energy Efficient – Optimized motor and drive systems reduce power consumption while maintaining high output.

Low Maintenance – Simplified design with easily accessible wear parts reduces maintenance time and operating costs.

Applications:

• Construction Industry – U-channels for structural framing, support systems, and building components

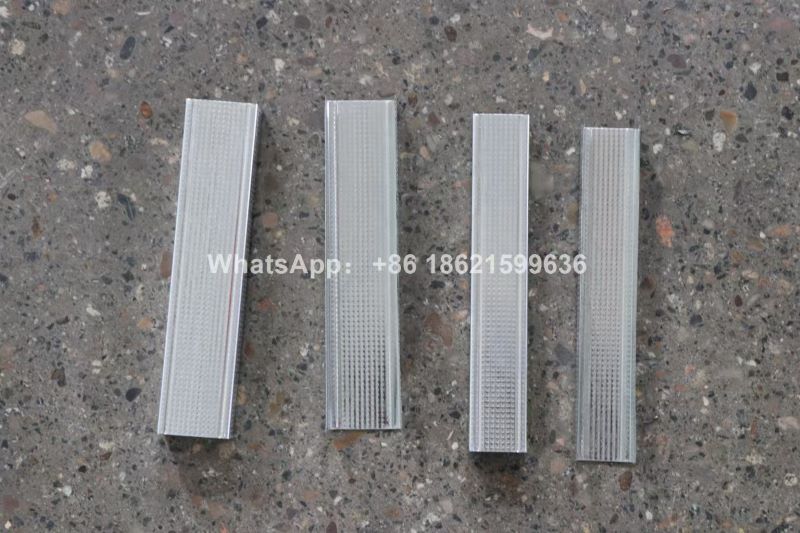

• Drywall Partition Systems – Track channels for interior wall framing

• Solar Mounting Systems – U-shaped rails for photovoltaic panel installation

• Infrastructure Projects – Highway guardrails, bridge components, and tunnel supports

• Warehouse and Logistics – Pallet racking beams and shelving supports

• Manufacturing – Guide rails, conveyor tracks, and equipment frames

• Interior Decoration – Decorative trims and partition framing
