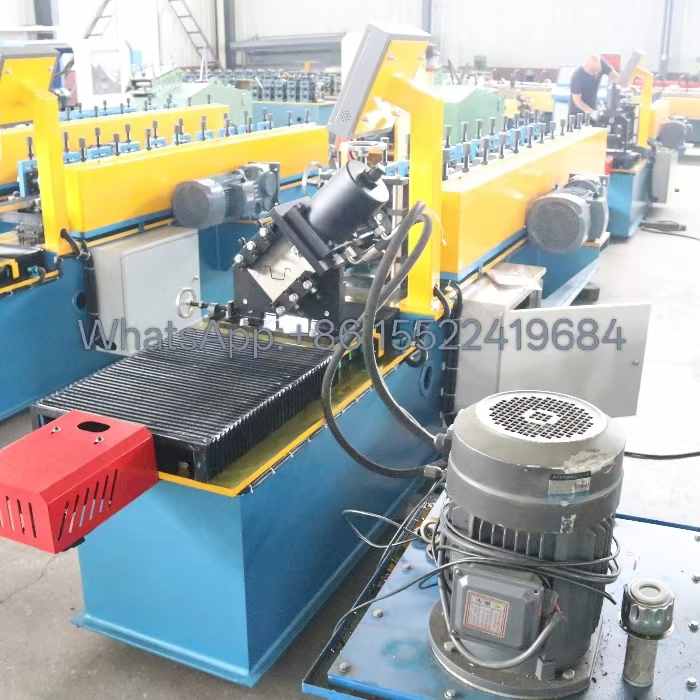

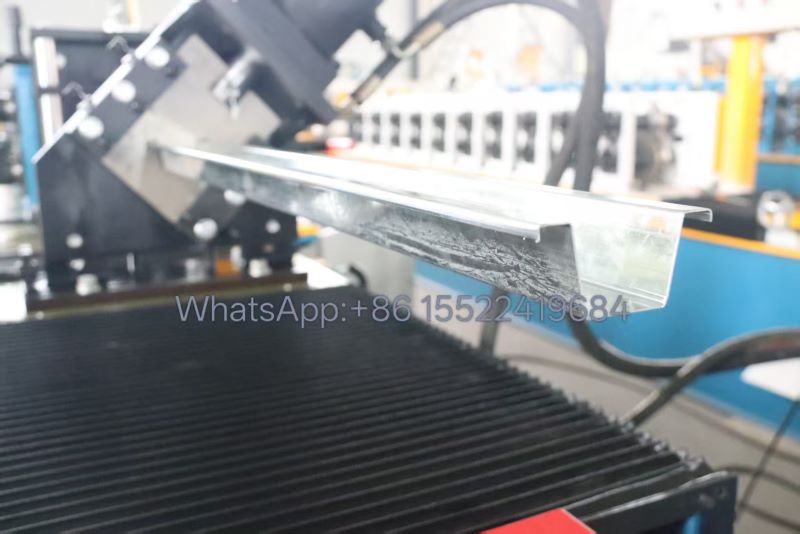

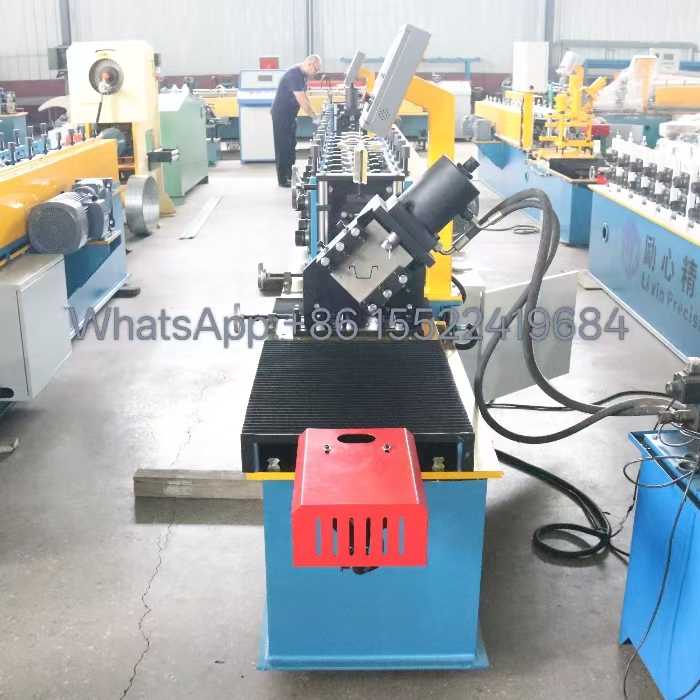

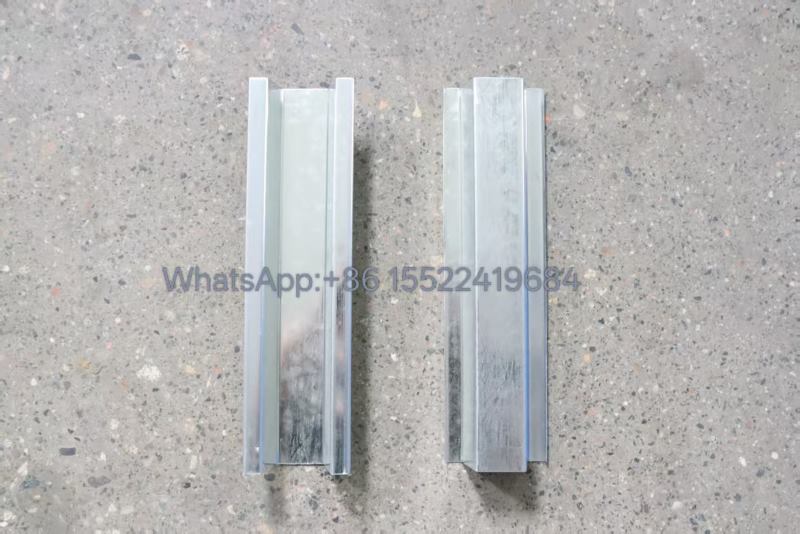

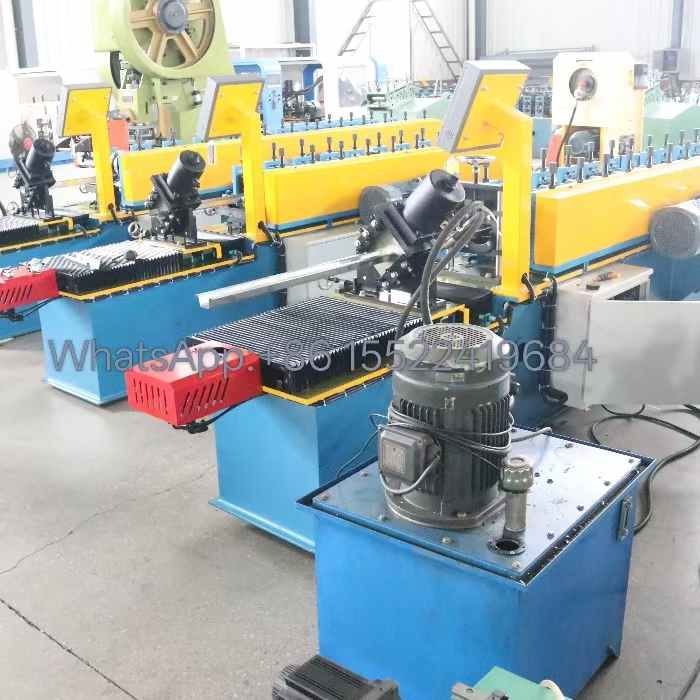

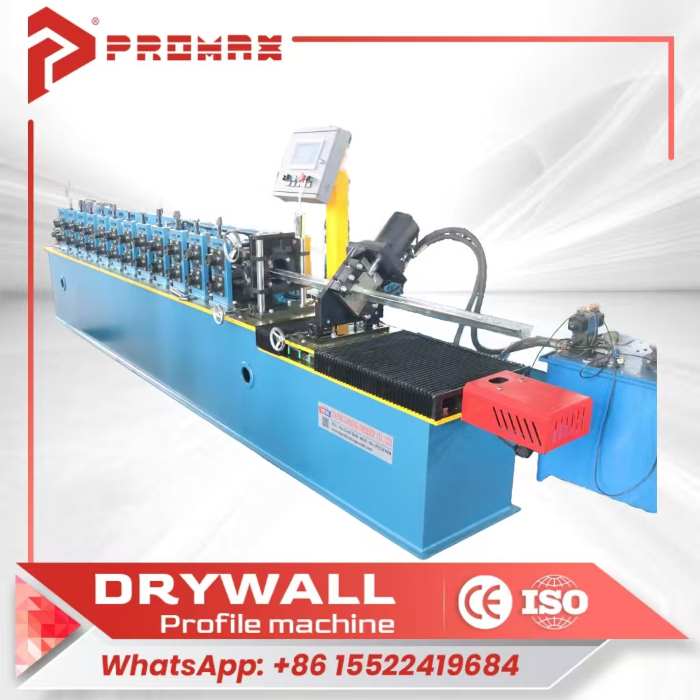

The Omega Roll Forming Machine is a highly automated and efficient cold-forming equipment specifically designed for the continuous roll-forming of widely used "Ω" shaped (also known as channel-shaped) light steel studs in the construction field. It is a key piece of machinery in modern building material production lines, transforming coils of high-quality galvanized steel strip into Omega-shaped studs with precise dimensions, exceptional strength, and perfect straightness through a precision-designed forming system.
Core Equipment Advantages & Features
1. High Efficiency & Automated Production:
Utilizes a PLC (Programmable Logic Controller) and variable frequency speed control system enabling one-touch start/stop and stepless speed adjustment, ensuring smooth and highly efficient line operation.
Fully automated continuous production from decoiling, leveling, punching/forming, fixed-length cutting to collecting, significantly reducing labor costs and boosting productivity.
Contact us to get a more favorable Omega roll forming machine price!
2. High Precision & Exceptional Stability:
Robust machine structure with high-strength cast steel gearbox transmission ensures stable power delivery, maintaining long-term operation free from deformation or vibration.

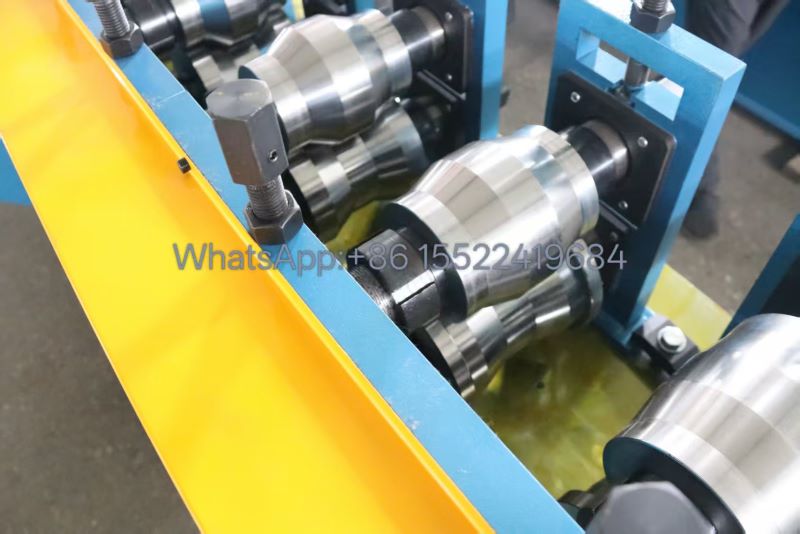

Precision-designed and manufactured forming rolls guarantee accurate cross-sectional dimensions, regular shape, and minimal straightness deviation of the final studs, greatly facilitating subsequent construction and installation.
3. Flexible Customization Capability:
Capable of producing Omega-shaped studs of different specifications, thicknesses (typically ranging from 0.4mm - 2.0mm), and heights by changing the roll forming molds, meeting diverse customer requirements.
Can integrate various functional units like online punching, embossing, or shearing as required, achieving integrated completion of specific processes.
Contact us to get a more favorable Omega roll forming machine price!
4. Excellent Forming Process:

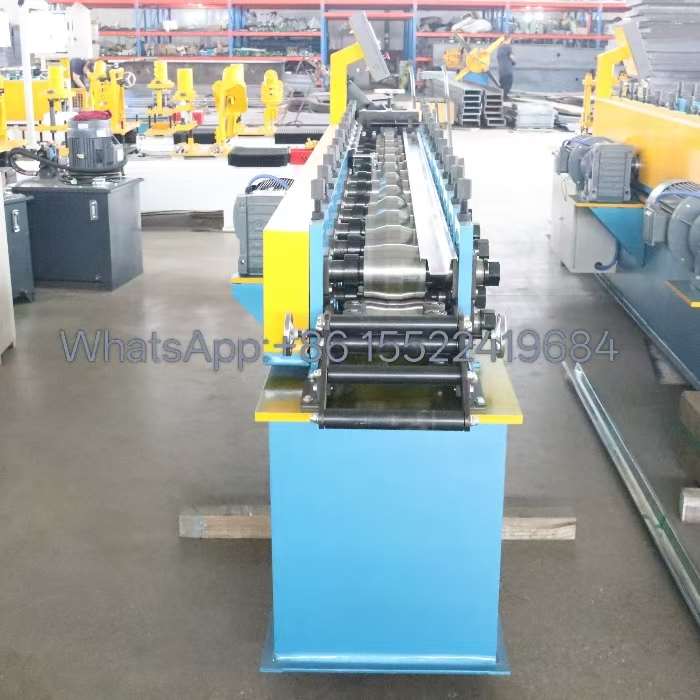

Employs a multi-stage (typically 10-18 passes) progressive cold-forming technique. This allows material to deform gradually at room temperature, avoiding stress concentration, ensuring the strength of the formed stud and the integrity of the surface galvanized layer, resulting in products resistant to cracking and deformation.
5. Easy Operation & Convenient Maintenance:
User-friendly HMI (Human-Machine Interface) touchscreen allows for intuitive parameter setting and clear fault diagnosis, making operation straightforward.
Modular design facilitates easy daily maintenance and component replacement, effectively reducing downtime.
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.45-0.9mm |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 12 rows(As your requirement) |
| Material of rollers | 45#steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58-60℃ |
| Power | 7.5+5.5KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50HZ, 3Phase(customizable) |
| Forming speed | 40-50m/min(The speed depends on the shape of the tile and the thickness of the material） |
