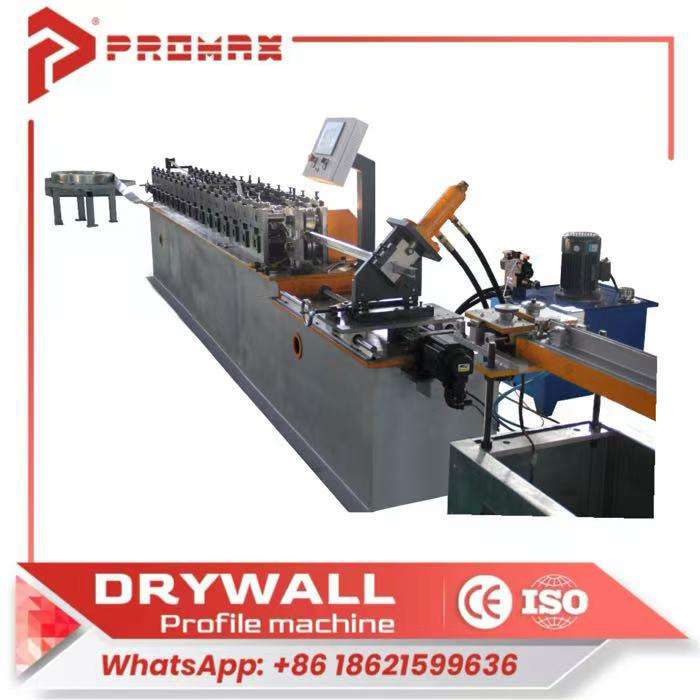

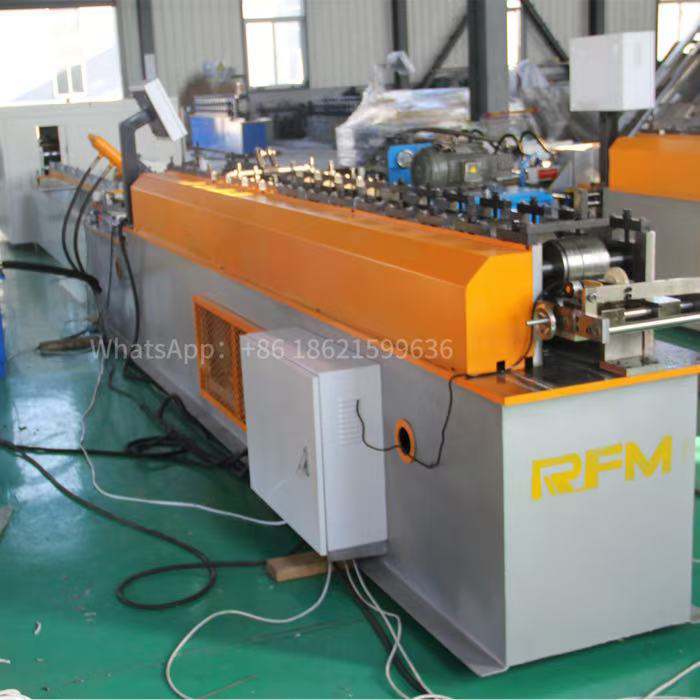

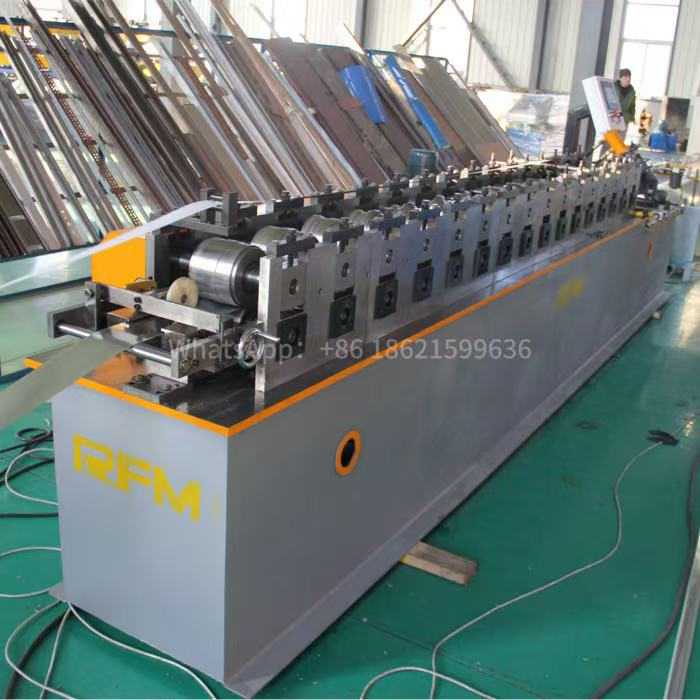

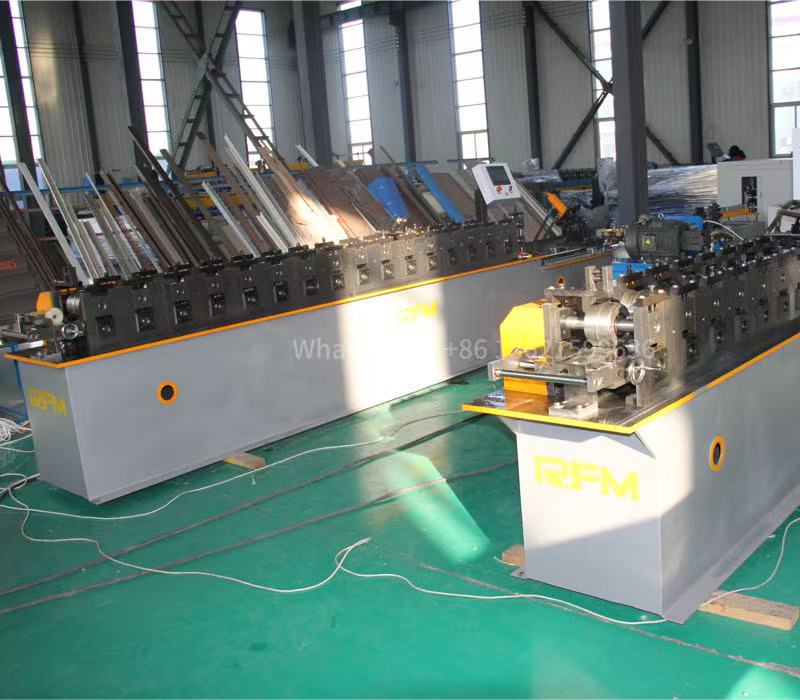

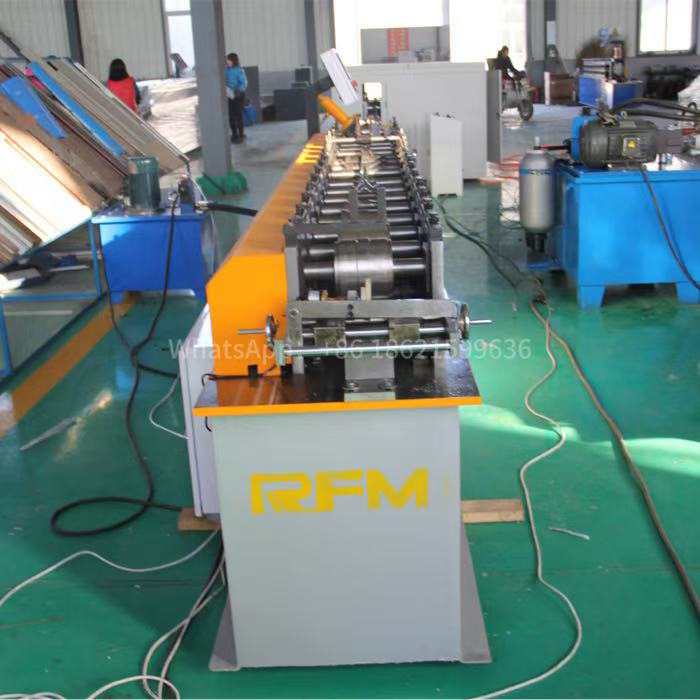

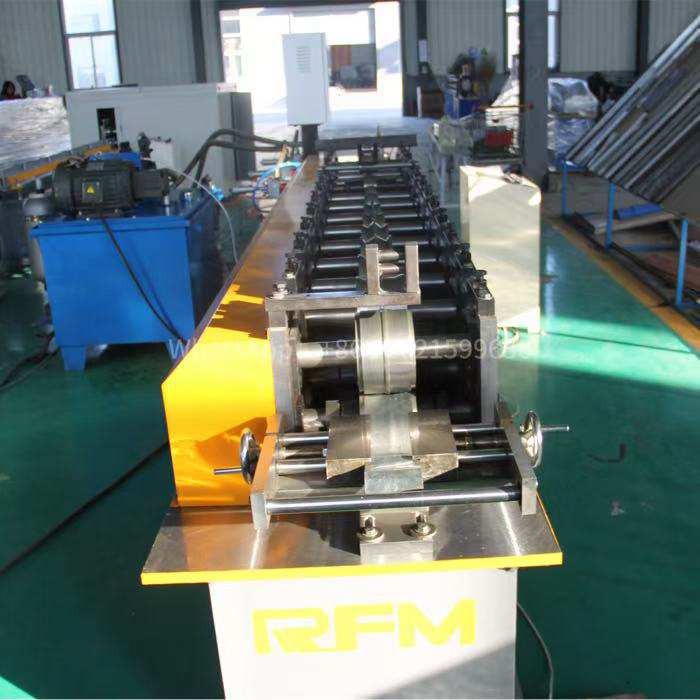

Our ceiling t grid machine is a high-performance roll forming system specifically designed for producing T-bar grid components used in suspended ceiling systems. Built with advanced manufacturing technology, this ceiling t grid machine ensures consistent profile accuracy, high output efficiency, and low material waste, making it an ideal solution for mass production of ceiling grids.

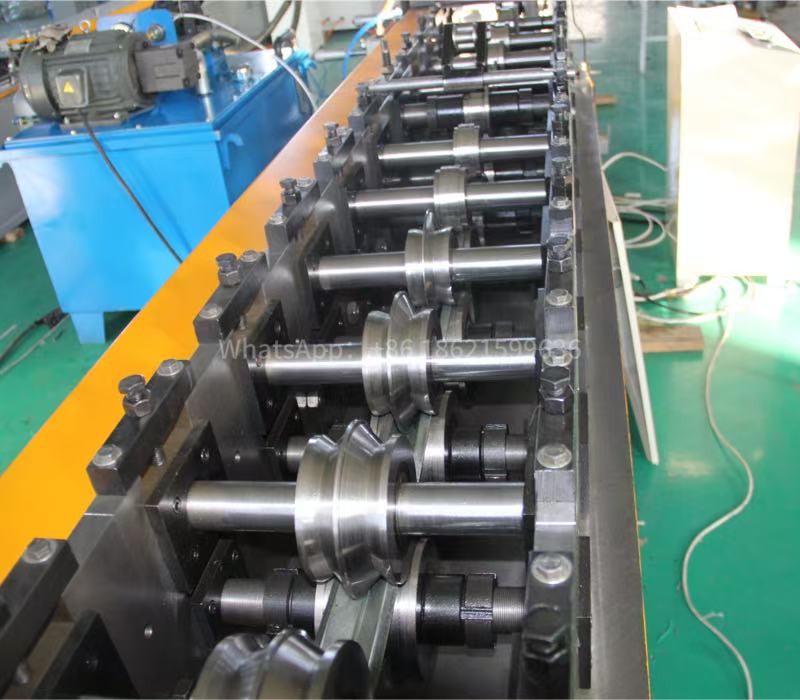

· High Precision Roll Forming: The ceiling t grid machine adopts heavy-duty rollers and a rigid frame to guarantee straightness and dimensional stability of every T-grid section.
· Automatic Hydraulic Punching & Cutting: Integrated punching and cutting units work synchronously with the roll forming process, reducing secondary operations and labor costs.

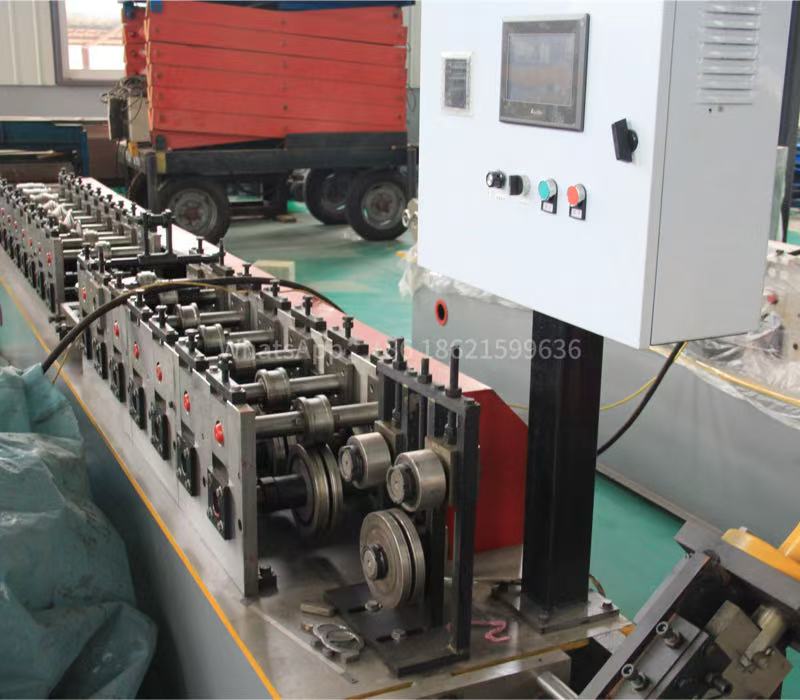

· User-Friendly PLC Control System: Touchscreen interface allows quick size changes and real-time monitoring, minimizing downtime and setup errors.
· Energy-Efficient Drive System: Servo motors and optimized transmission reduce power consumption while maintaining high line speeds.
· Durable Tooling & Quick Roll Change: Hardened steel rollers extend service life, and the modular design enables fast changeover for different T-grid profiles.
| Forming Unit Motor | Three-phase Asynchronous Motor, 5.5 kW |
| Forming Unit Pressure Roller | Forming Unit Pressure Roller |
| Forming Unit Pressure Roller Shaft | 45# Steel for Quenching and Tempering Treatment, Shaft Diameter 40 |
| Stamping Die | 3 Sets of Punching Head Dies, 1 Set of Punching Hole Dies; Knife Edge Material: SKD11, Heat Treatment 58 Degrees |
| Hydraulic Station | 7.5KEDC24V Solenoid Valve (华德) and Supporting Motor |
| Automatic Hole Punching Lead Screw | TBI |
| Automatic Hole Punching Guide Rail | CSK |
| Automatic Hole Punching Servo Motor | Yifeng 130ST-15015 Servo Motor |
| Automatic Hole Punching Receiving Platform | Stainless Steel Plate Surface |
| Electrical Control Cabinet | Independently Developed, Supports International Communication Ports, Touch Screen (KunLuntong Tai) |
All-in-One Engineering Solutions
From initial concept to final production, we provide comprehensive support tailored to your needs.
Built to Last
Our machines are engineered for durability, delivering reliable performance over years of continuous operation.
Precision You Can Trust
Achieve consistent, micron-level accuracy in every product with our advanced roll forming technology.
Superior Materials
We use only premium-grade components to ensure strength, stability, and longevity.
Advanced Automation Systems
Equipped with cutting-edge electrical and control systems for enhanced efficiency and precision.
About Us
Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
