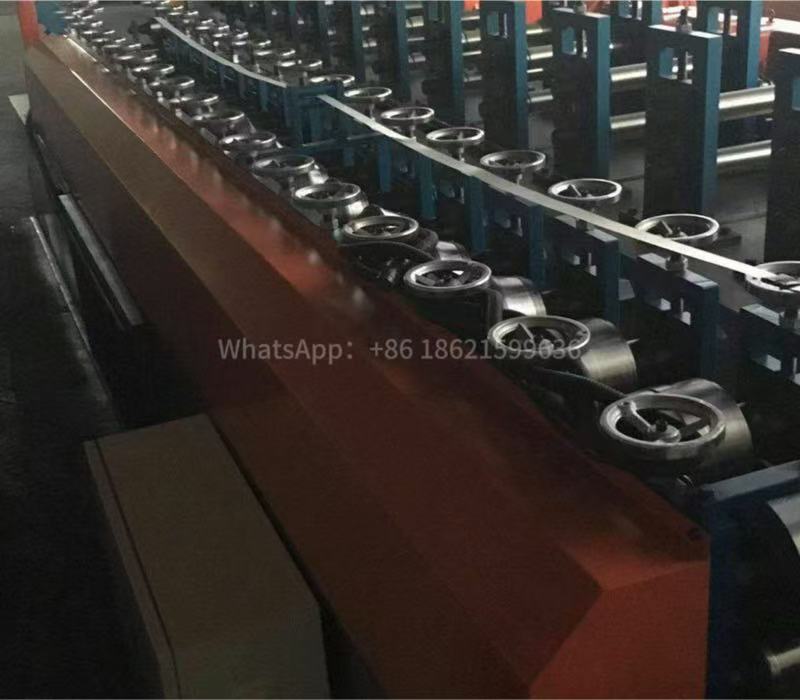

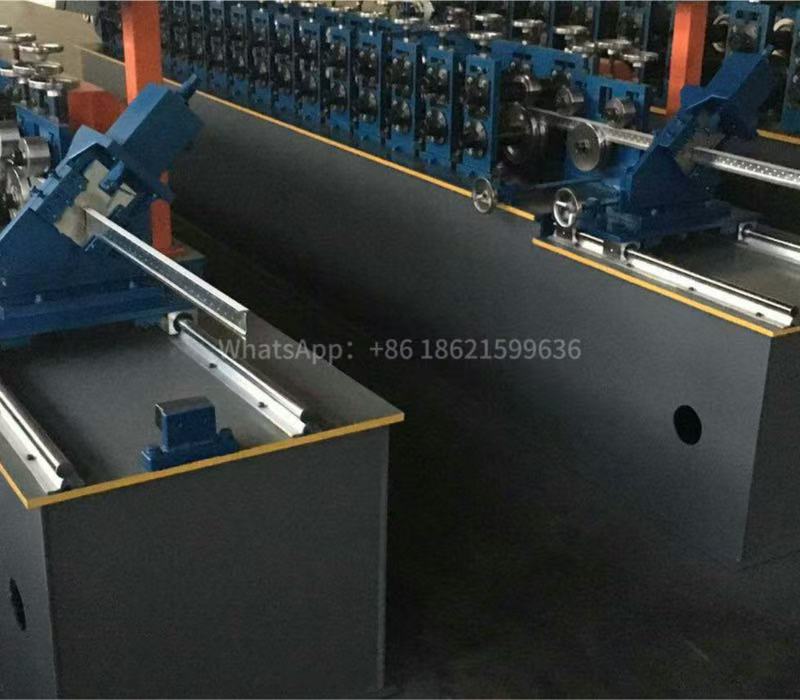

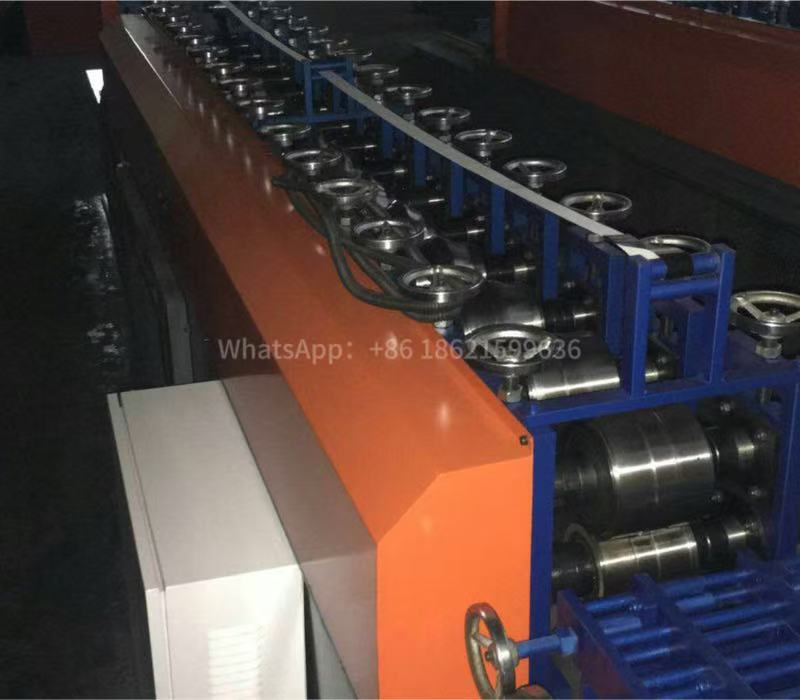

Our automatic T grids machine is designed for high-efficiency production of T-bar ceiling grids, widely used in commercial and residential construction projects. With fully automated feeding, roll forming, and cutting systems, this automatic T grids machine ensures consistent accuracy and minimal material waste.
· High-Speed Production: The automatic T grids machine operates at up to 25 meters per minute, significantly reducing labor costs.
· PLC Control System: User-friendly interface allows precise adjustment of grid length and punching positions.
· Durable Tooling: Made from hardened steel for long service life and low maintenance.
· Energy Efficient: Servo motor technology reduces power consumption by 30% compared to traditional machines.
· Quick Changeover: Switch between different T-grid profiles in under 10 minutes.
| Forming Unit Motor | Three-phase Asynchronous Motor, 5.5 kW |
| Forming Unit Pressure Roller | Forming Unit Pressure Roller |
| Forming Unit Pressure Roller Shaft | 45# Steel for Quenching and Tempering Treatment, Shaft Diameter 40 |
| Stamping Die | 3 Sets of Punching Head Dies, 1 Set of Punching Hole Dies; Knife Edge Material: SKD11, Heat Treatment 58 Degrees |
| Hydraulic Station | 7.5KEDC24V Solenoid Valve (华德) and Supporting Motor |
| Automatic Hole Punching Lead Screw | TBI |
| Automatic Hole Punching Guide Rail | CSK |
| Automatic Hole Punching Servo Motor | Yifeng 130ST-15015 Servo Motor |
| Automatic Hole Punching Receiving Platform | Stainless Steel Plate Surface |
| Electrical Control Cabinet | Independently Developed, Supports International Communication Ports, Touch Screen (KunLuntong Tai) |
