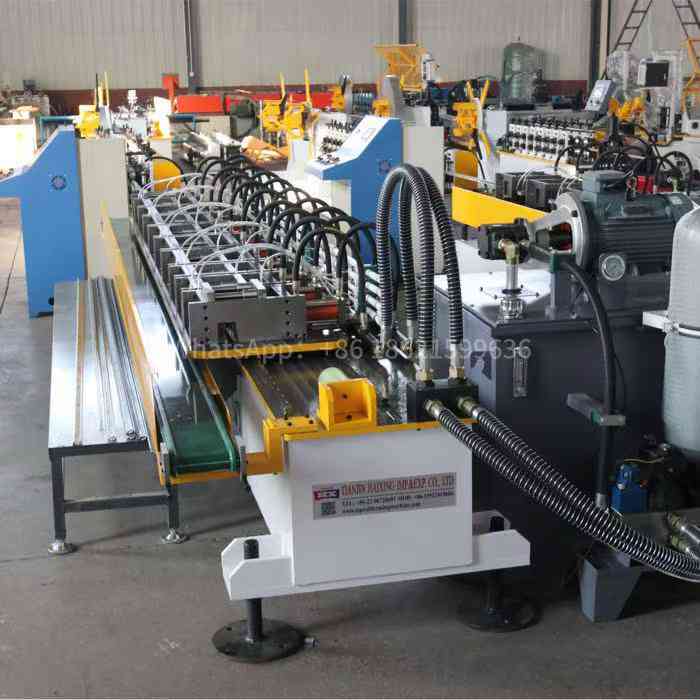

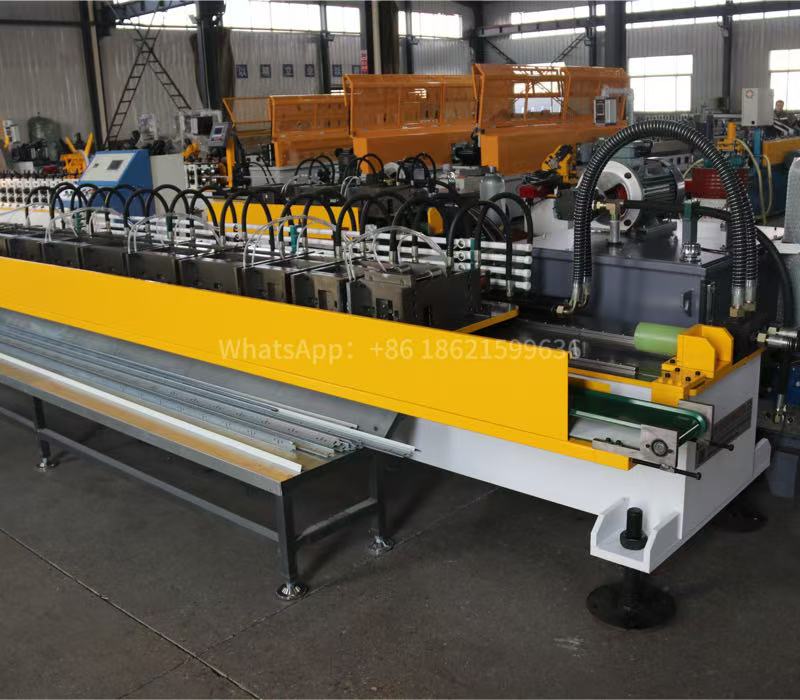

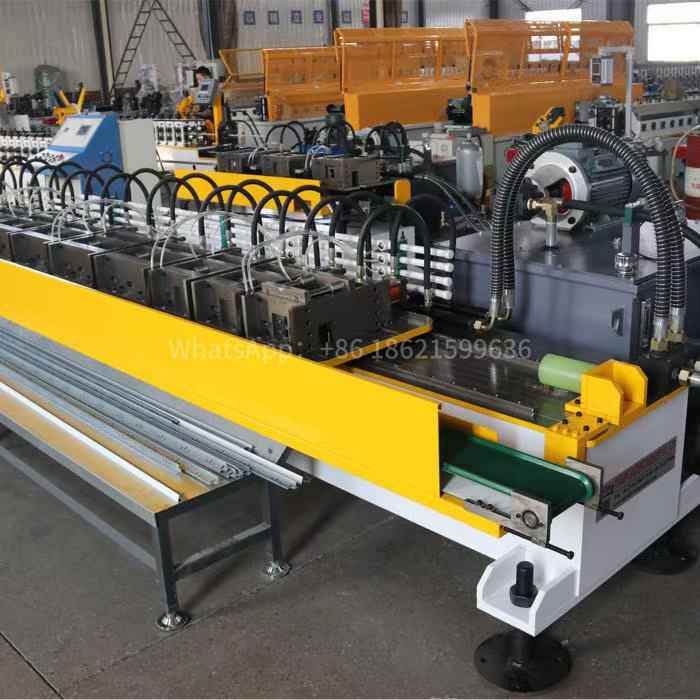

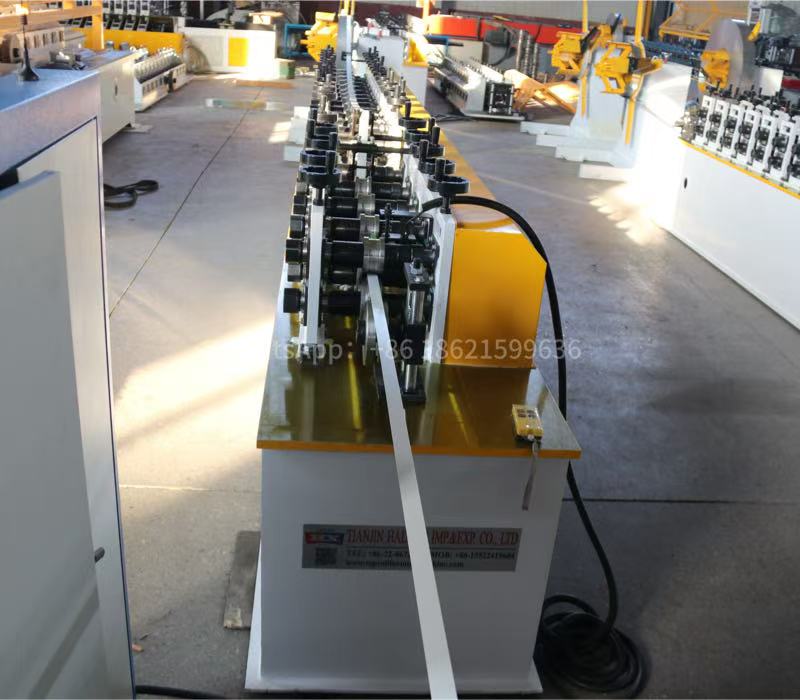

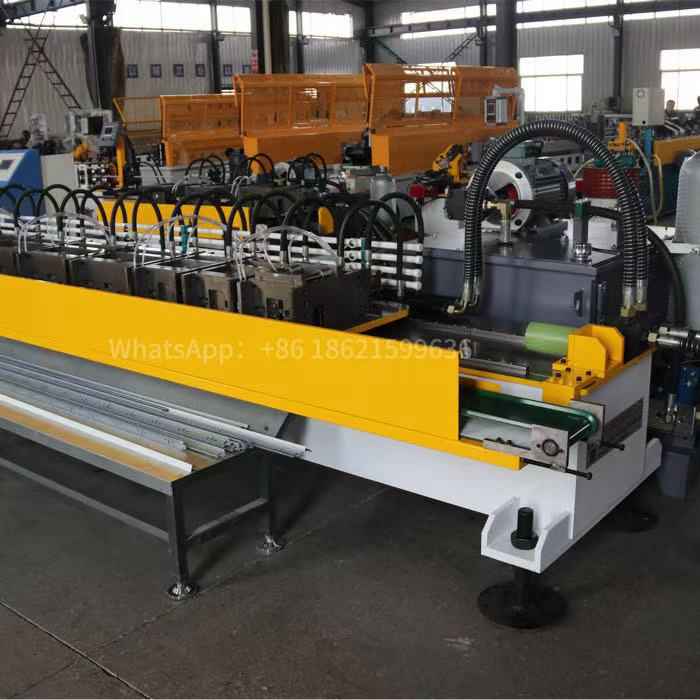

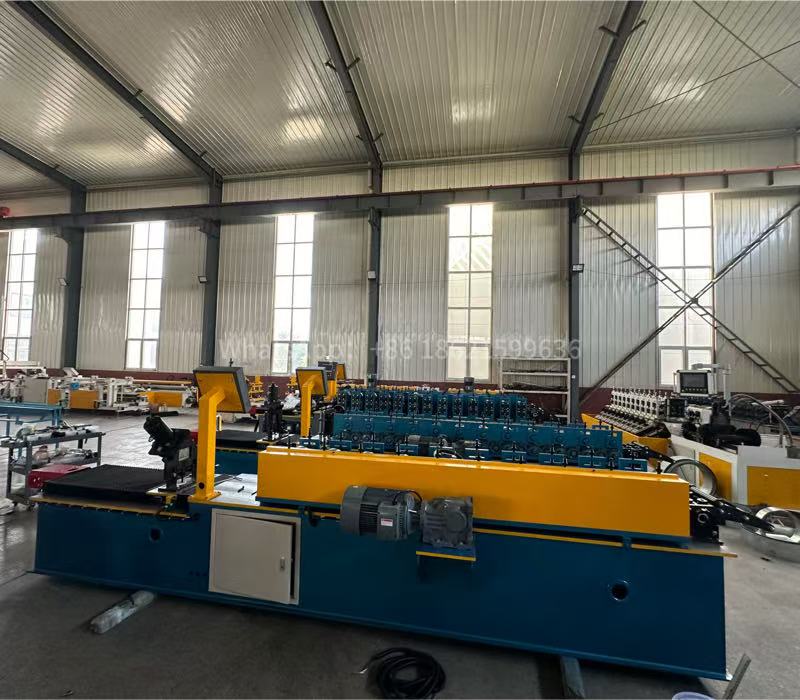

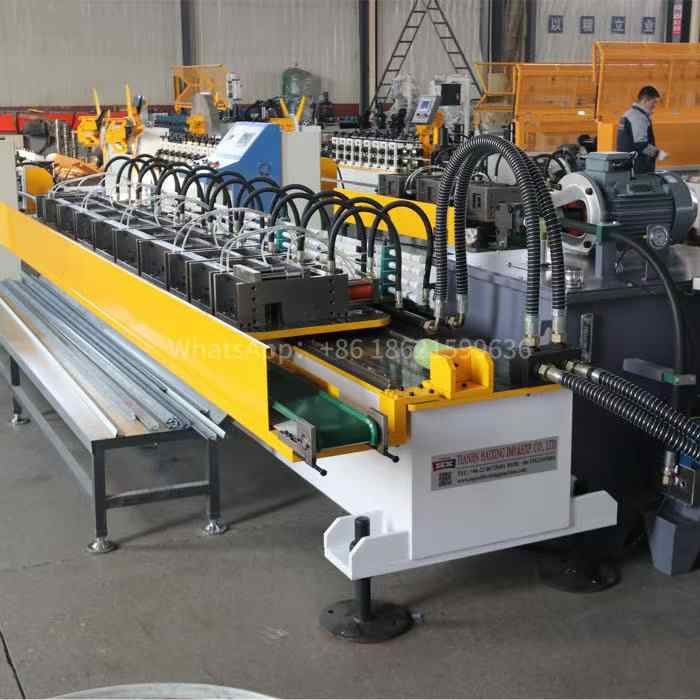

Our grid ceiling panel making machine is specifically designed for producing high-quality T-bar grids used in suspended ceiling systems. With advanced roll-forming technology, this grid ceiling panel making machine ensures precise dimensions, smooth edges, and consistent profiles for all standard T-bar sizes. Whether you need main tees or cross tees, this grid ceiling panel making machine delivers unmatched efficiency and durability, making it an ideal choice for construction material manufacturers worldwide.

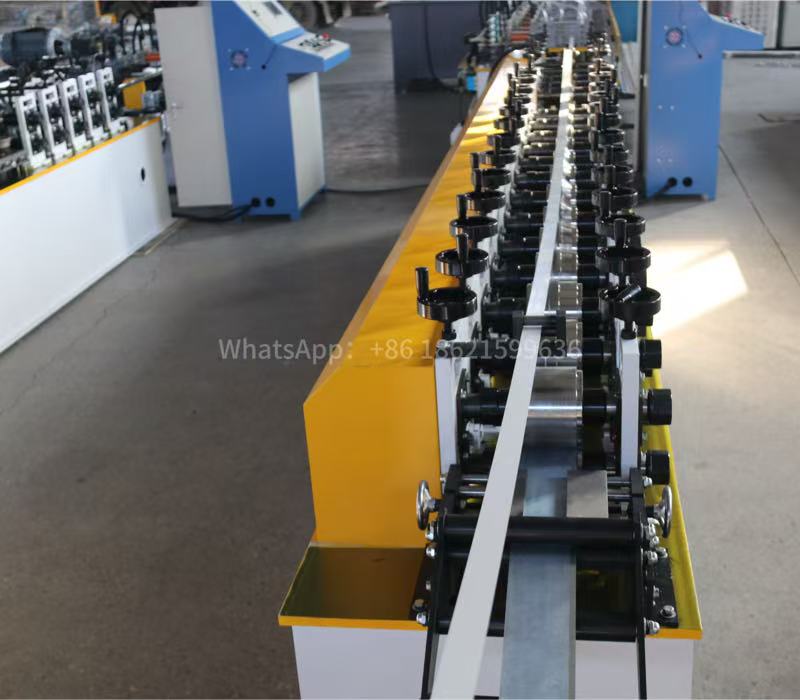

· High Precision Roll Forming – CNC-controlled rollers guarantee accurate T-bar shapes with minimal material waste.
· Automatic Hydraulic Punching & Cutting – Integrated system punches holes and cuts to length automatically, reducing labor costs.
· Quick Changeover – Adjustable tooling allows fast switching between different T-bar profiles (e.g., 24mm, 15mm).
· Heavy-Duty Frame – Robust construction ensures stable operation even at high speeds (up to 15m/min).
· User-Friendly PLC Control – Touchscreen interface for easy parameter setting and real-time production monitoring.
| Forming Unit Motor | Three-phase Asynchronous Motor, 5.5 kW |
| Forming Unit Pressure Roller | Forming Unit Pressure Roller |
| Forming Unit Pressure Roller Shaft | 45# Steel for Quenching and Tempering Treatment, Shaft Diameter 40 |
| Stamping Die | 3 Sets of Punching Head Dies, 1 Set of Punching Hole Dies; Knife Edge Material: SKD11, Heat Treatment 58 Degrees |

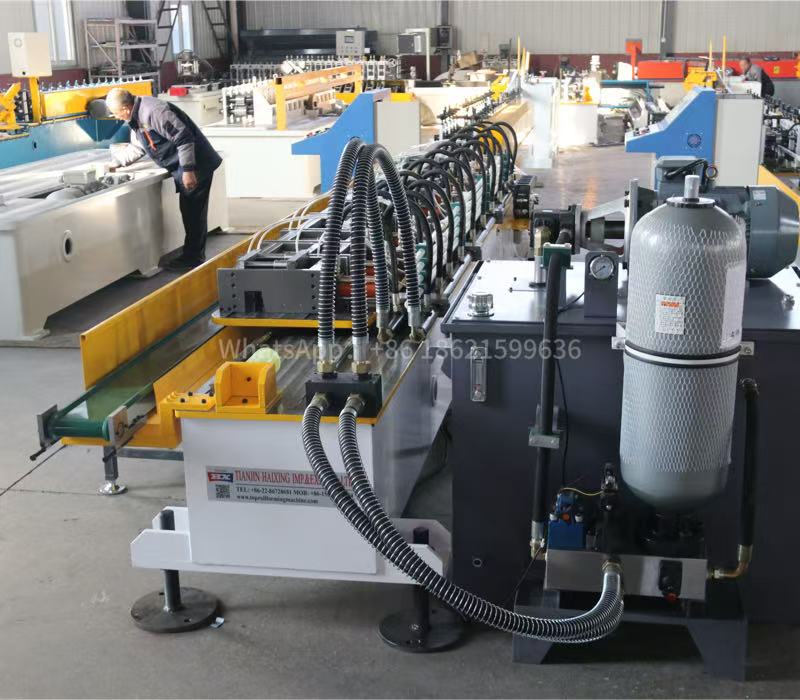

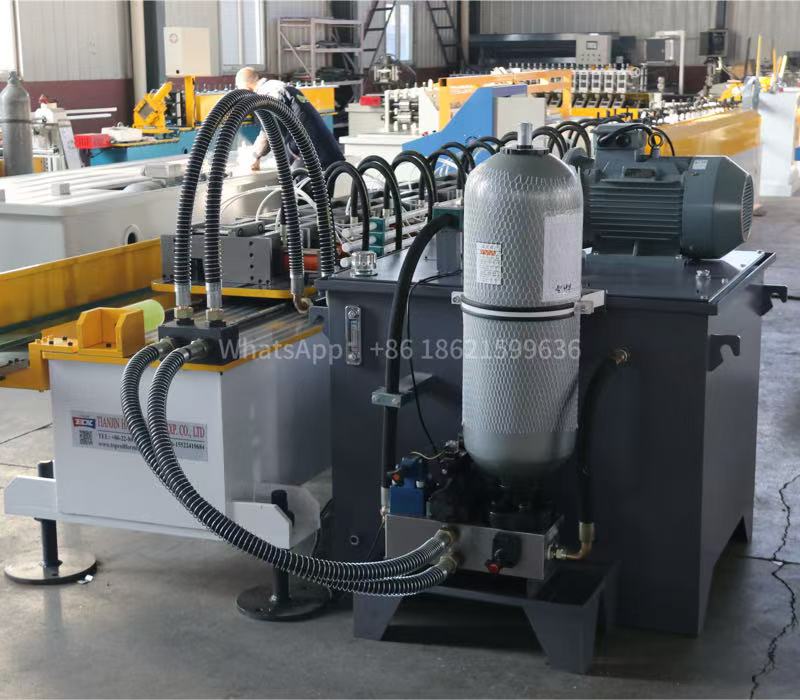

| Hydraulic Station | 7.5KEDC24V Solenoid Valve (华德) and Supporting Motor |
| Automatic Hole Punching Lead Screw | TBI |
| Automatic Hole Punching Guide Rail | CSK |
| Automatic Hole Punching Servo Motor | Yifeng 130ST-15015 Servo Motor |
| Automatic Hole Punching Receiving Platform | Stainless Steel Plate Surface |
| Electrical Control Cabinet | Independently Developed, Supports International Communication Ports, Touch Screen (KunLuntong Tai) |
