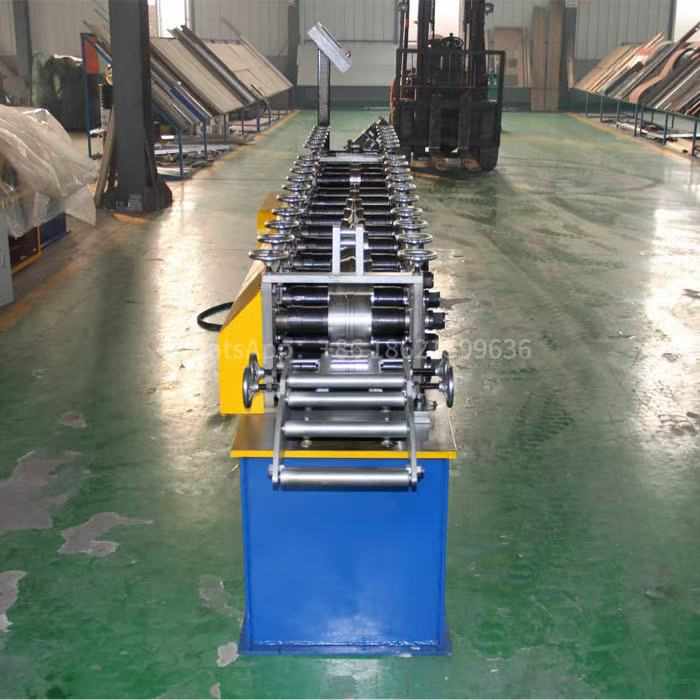

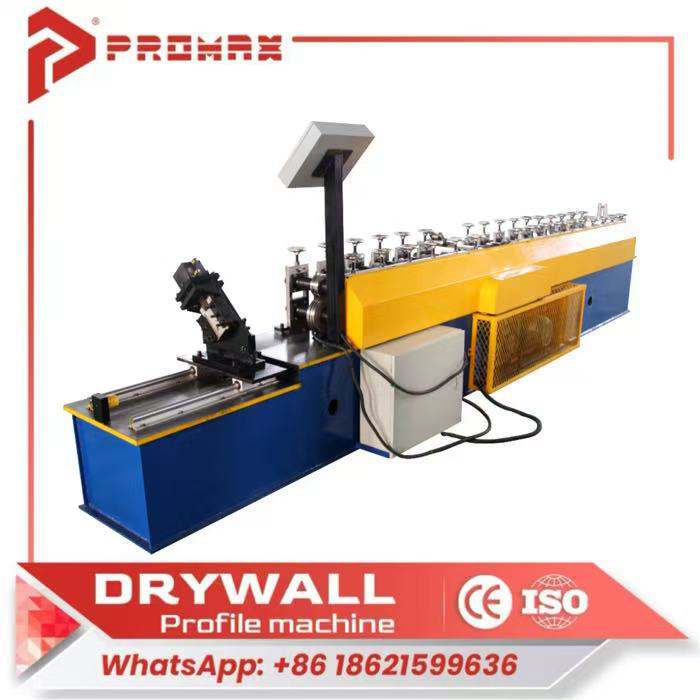

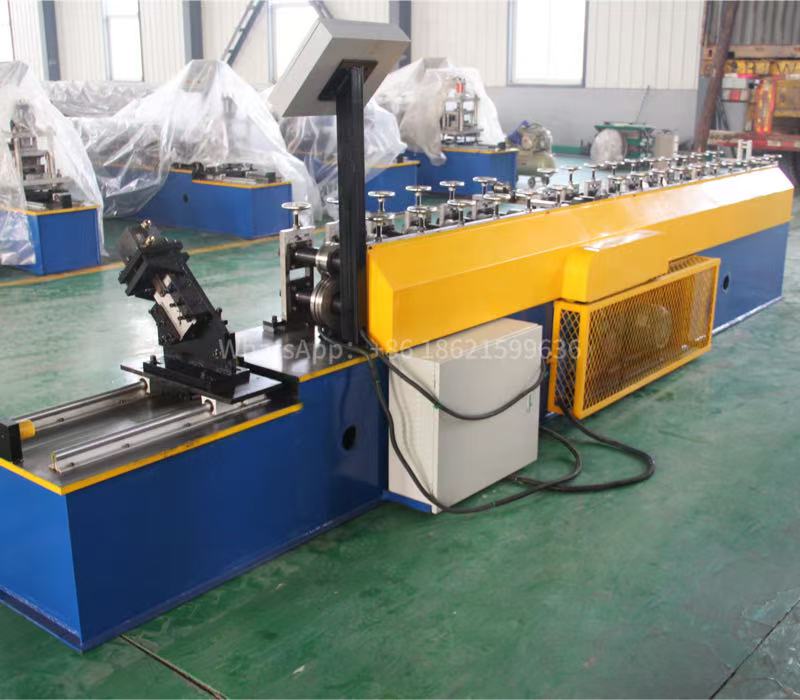

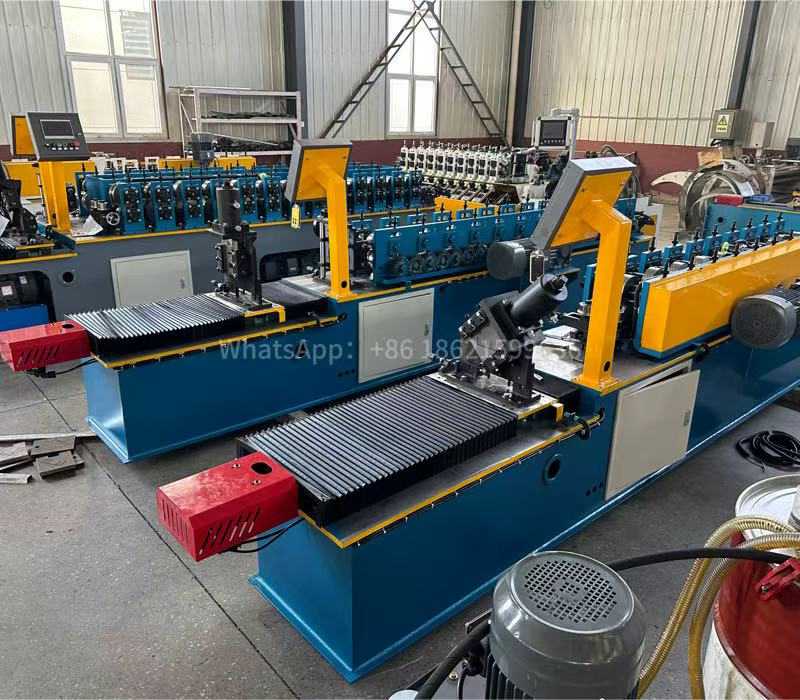

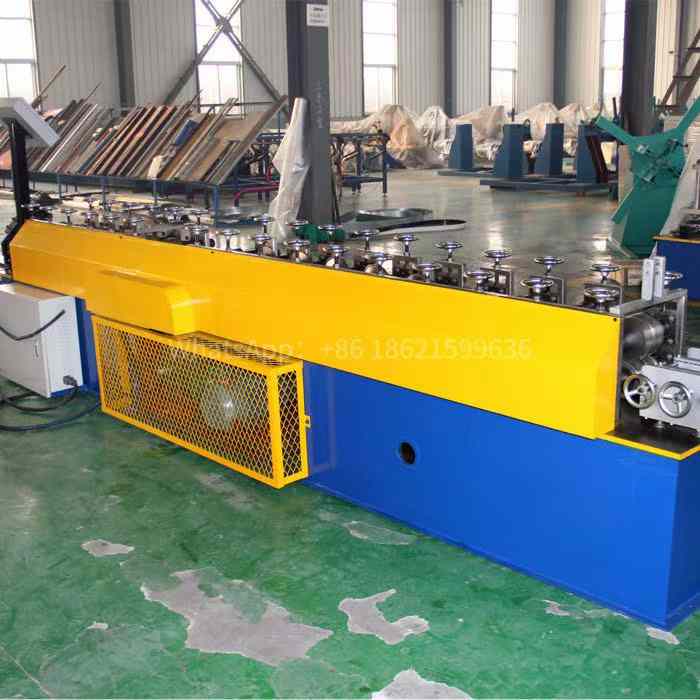

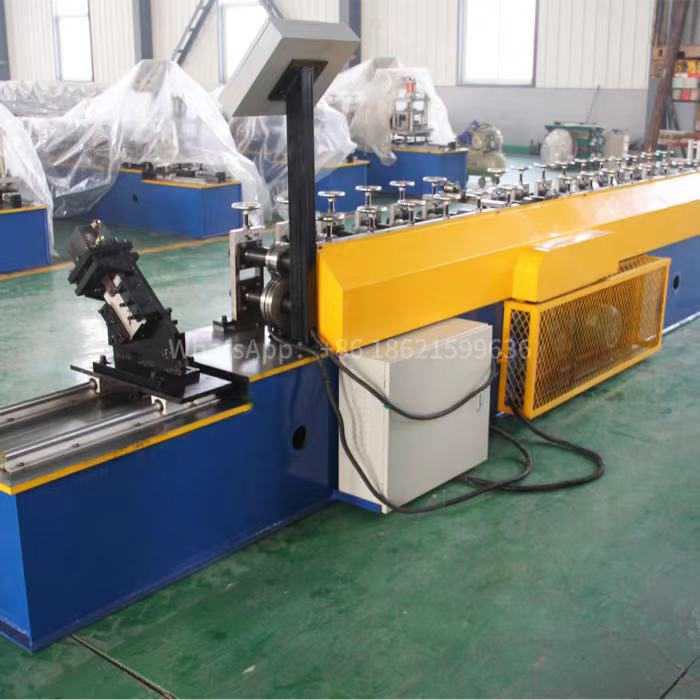

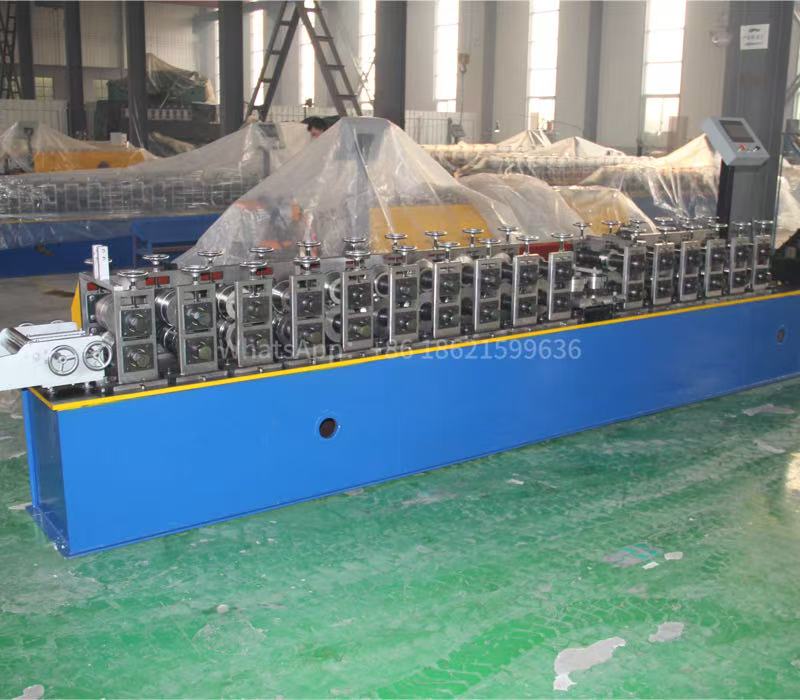

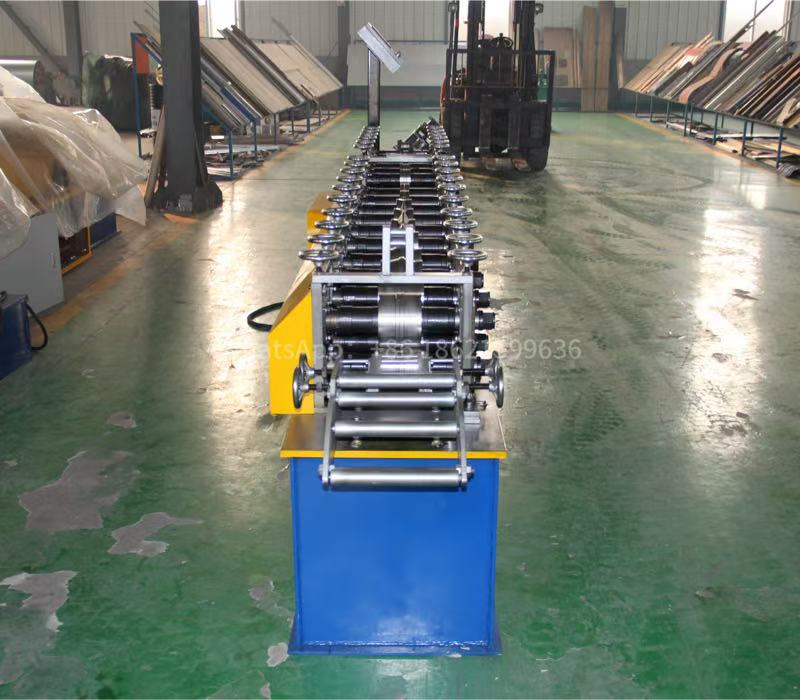

Our ceiling T grid forming machine is specifically designed for producing high-quality T-bar grid components used in suspended ceiling systems. This ceiling T grid forming machine adopts advanced roll forming technology to ensure straightness, flatness, and precise dimensions of each finished profile. With automatic decoiler, feeding, punching, cutting, and discharging systems, the ceiling T grid forming machine significantly improves production efficiency while reducing labor costs.

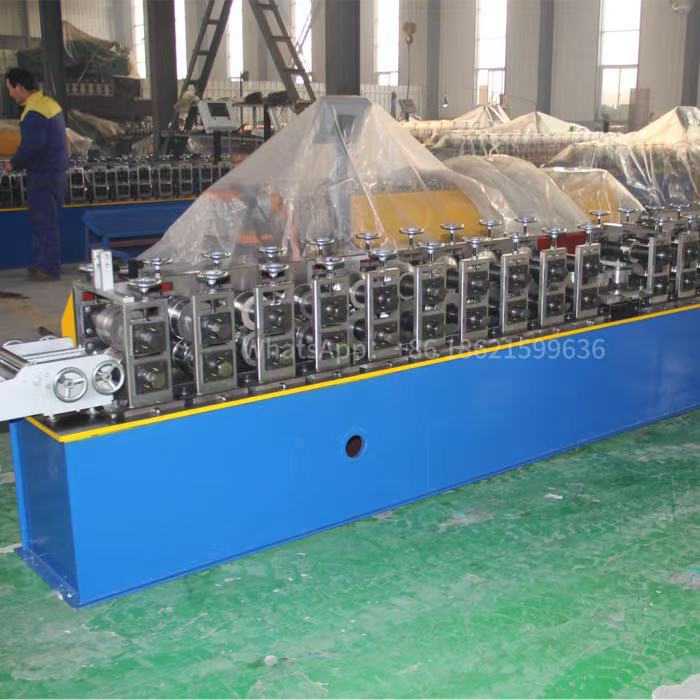

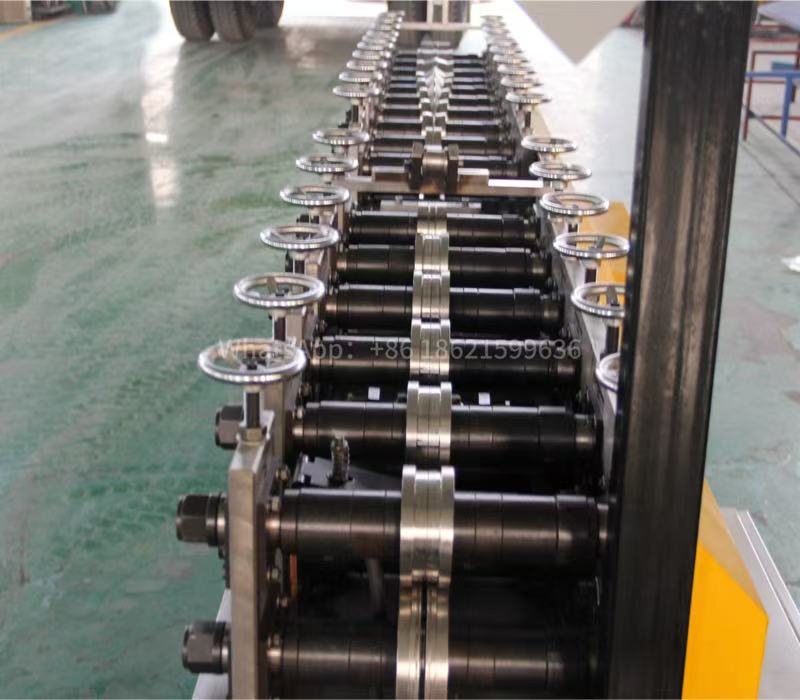

· High Precision Forming – Multi-stage roll forming stands ensure accurate T-grid profiles with consistent quality.
· PLC Automatic Control – User-friendly touchscreen interface allows easy parameter adjustment for different sizes.
· Integrated Punching & Cutting – Pre-punched holes and automatic cutting to length are completed in one continuous process.

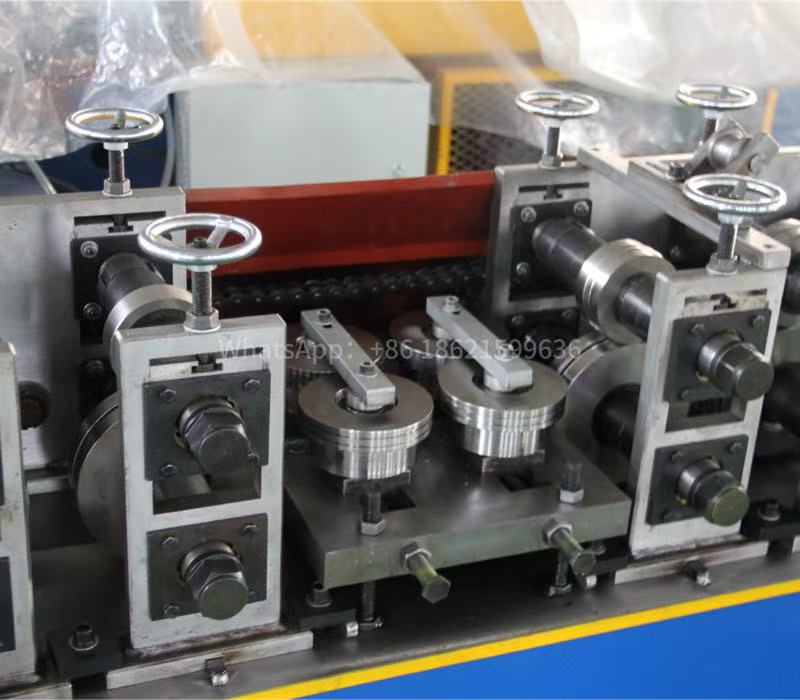

· Durable Rollers – High-grade steel rollers with heat treatment provide long service life and low maintenance.
· Quick Changeover – Optional hydraulic or manual adjustment for changing T-bar heights and widths.
· Energy Efficient – Servo drive system (optional) reduces power consumption and noise.
| Forming Unit Motor | Three-phase Asynchronous Motor, 5.5 kW |
| Forming Unit Pressure Roller | Forming Unit Pressure Roller |
| Forming Unit Pressure Roller Shaft | 45# Steel for Quenching and Tempering Treatment, Shaft Diameter 40 |

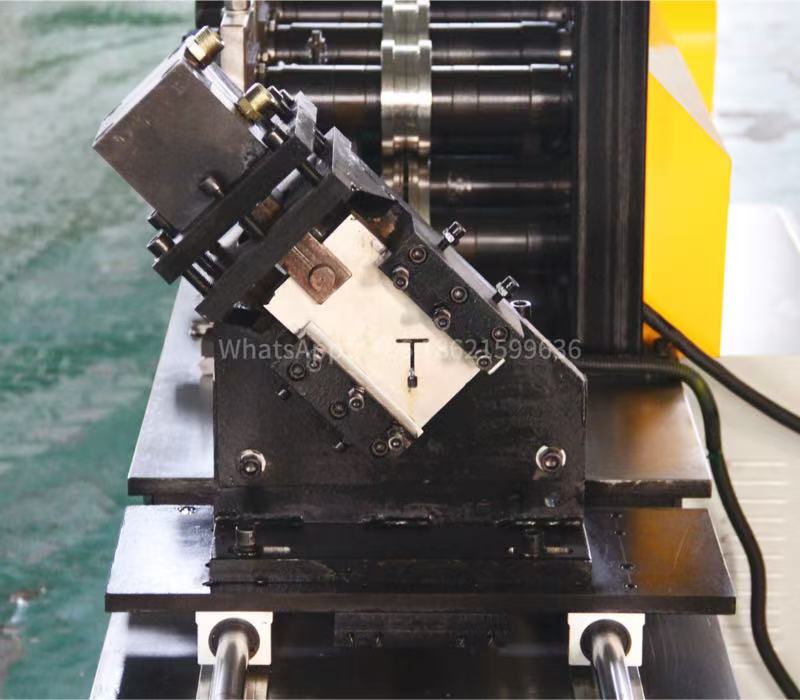

| Stamping Die | 3 Sets of Punching Head Dies, 1 Set of Punching Hole Dies; Knife Edge Material: SKD11, Heat Treatment 58 Degrees |
| Hydraulic Station | 7.5KEDC24V Solenoid Valve (华德) and Supporting Motor |
| Automatic Hole Punching Lead Screw | TBI |
| Automatic Hole Punching Guide Rail | CSK |
| Automatic Hole Punching Servo Motor | Yifeng 130ST-15015 Servo Motor |
| Automatic Hole Punching Receiving Platform | Stainless Steel Plate Surface |
| Electrical Control Cabinet | Independently Developed, Supports International Communication Ports, Touch Screen (KunLuntong Tai) |
