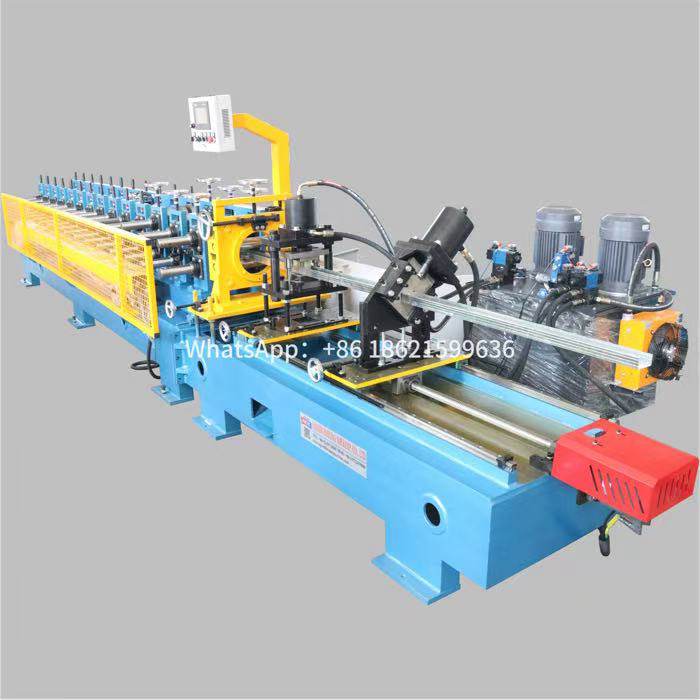

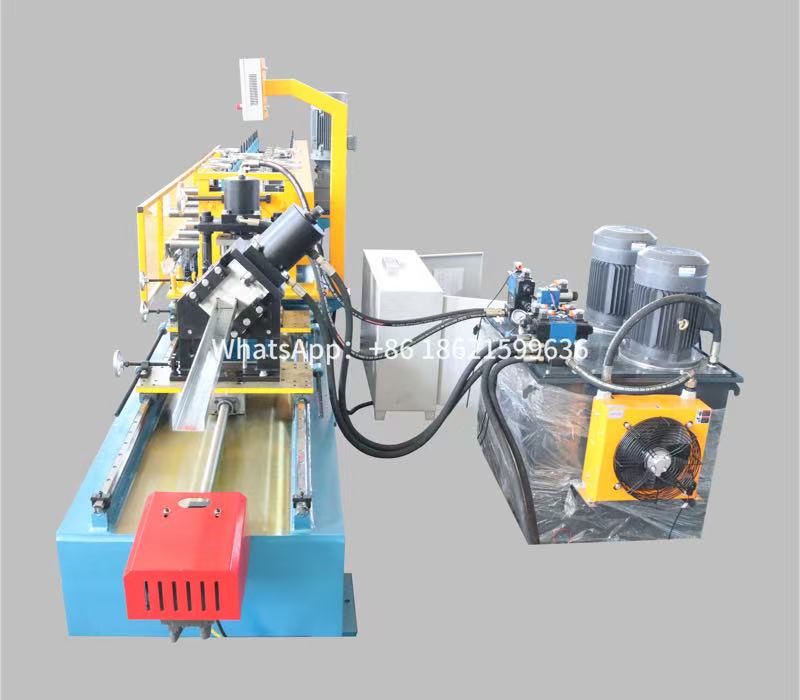

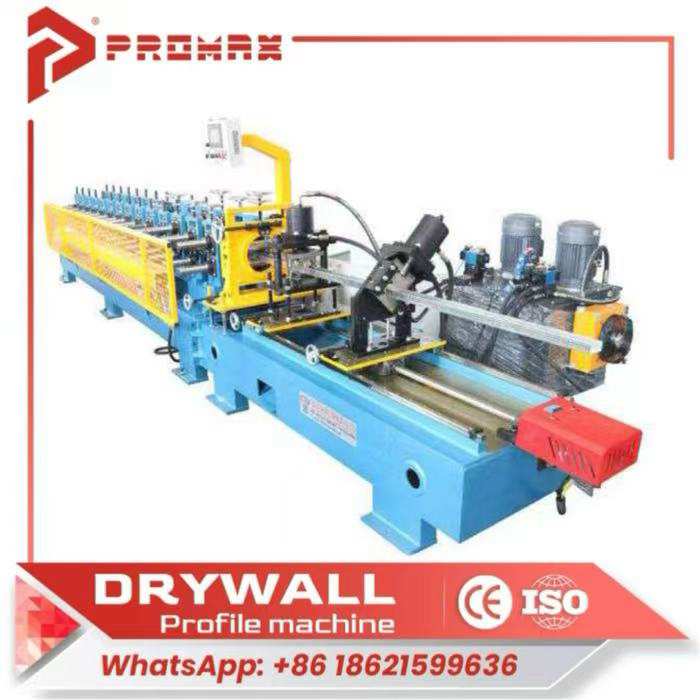

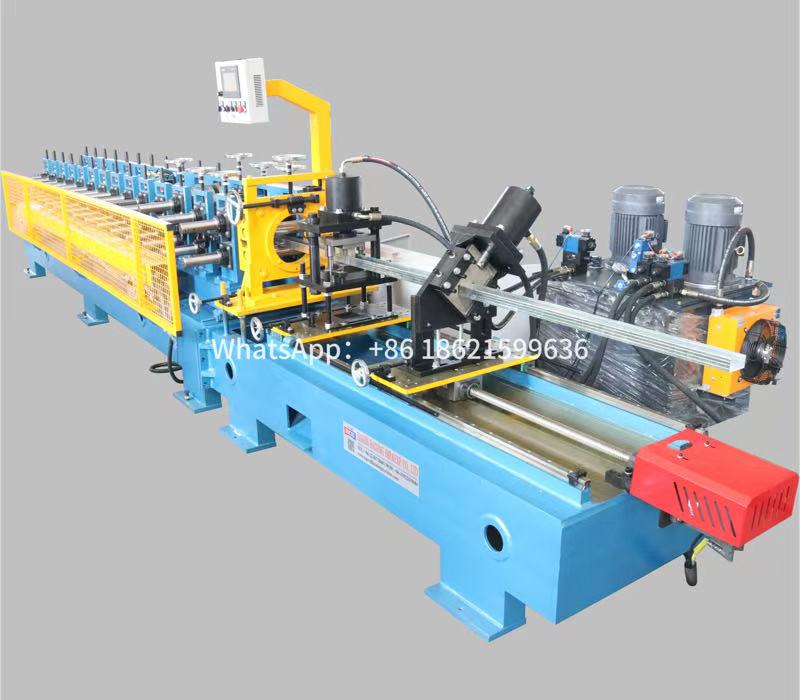

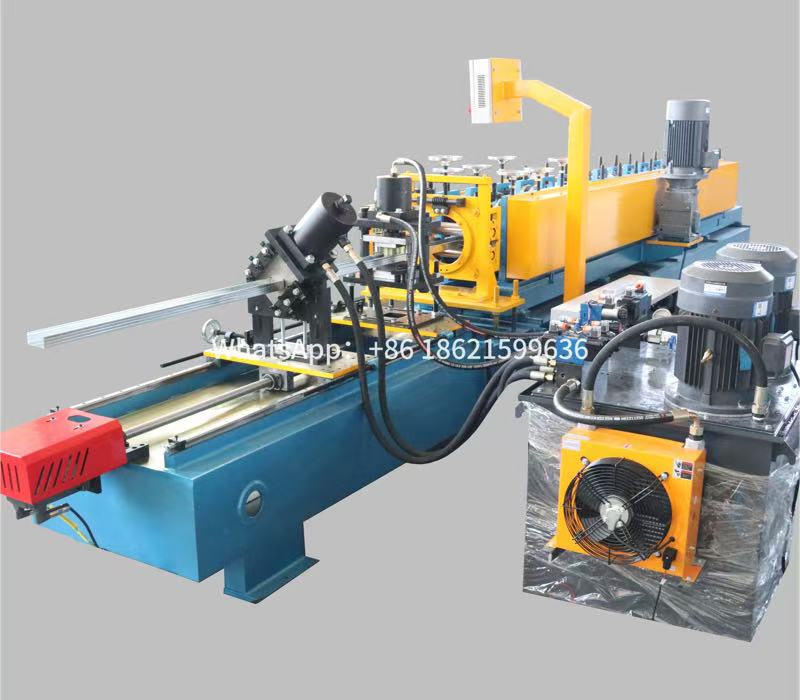

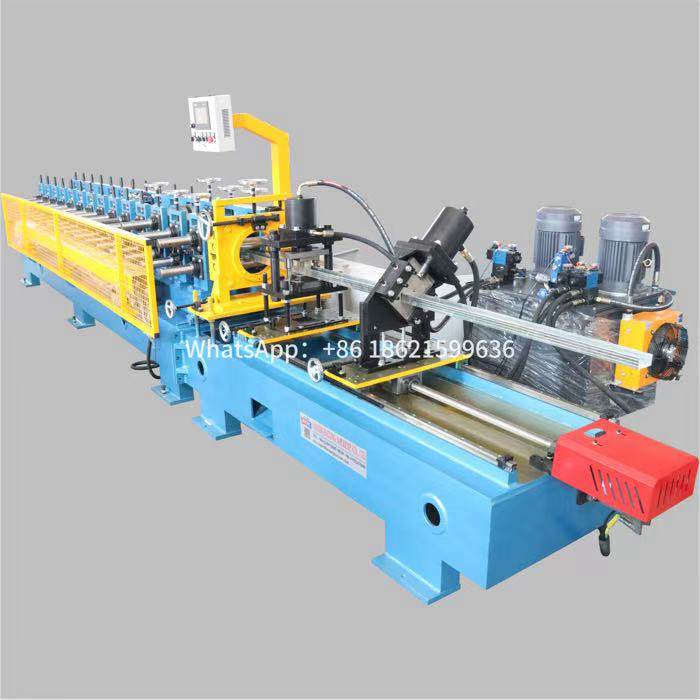

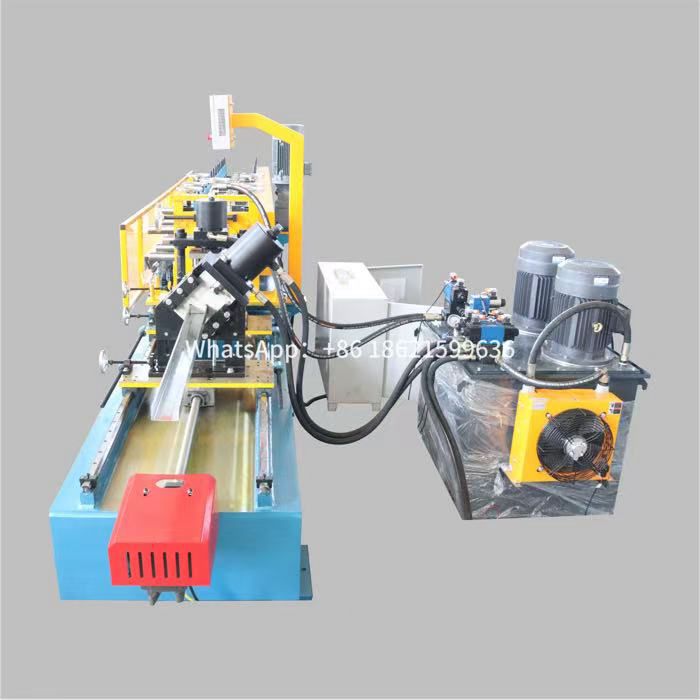

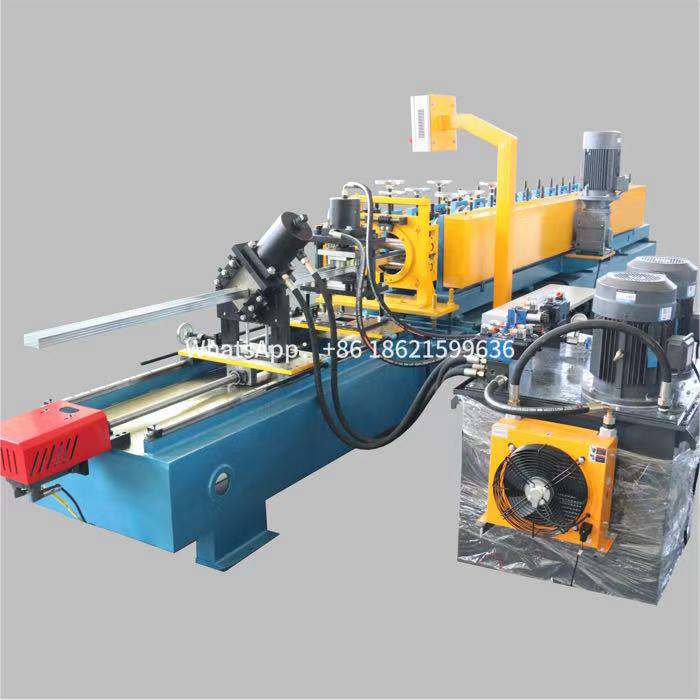

Metal stud and track roll forming machine

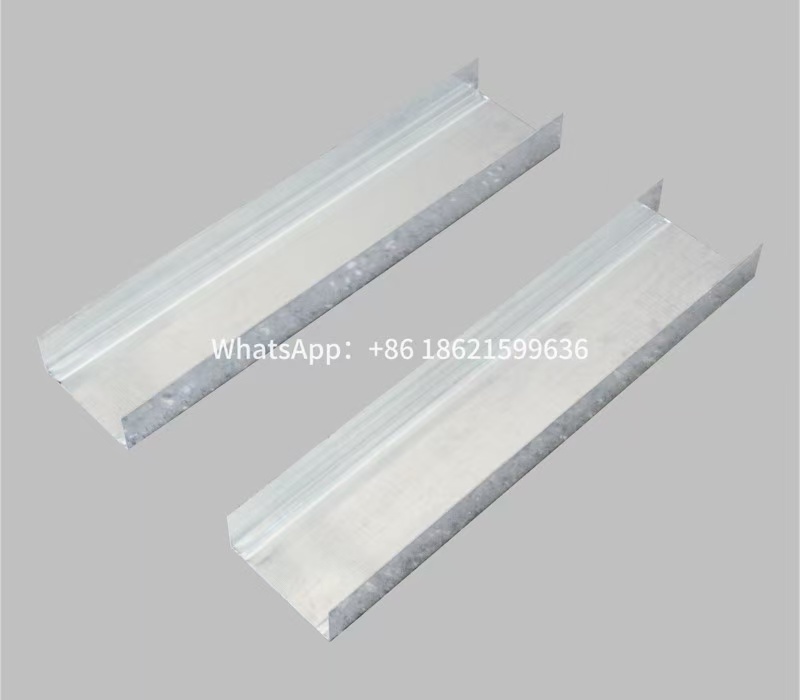

Our CU channel stud and track roll forming line is a high-efficiency solution specifically designed for producing drywall steel framing components, including C-shaped studs, U-shaped tracks, and custom-cut accessories. As a specialized Metal stud and track roll forming machine, it integrates uncoiling, leveling, punching, roll forming, and flying shearing into one continuous automated process, ensuring consistent profile accuracy and outstanding surface quality. Whether for standard partition walls or load-bearing curtain wall systems, this Metal stud and track roll forming machine delivers stable output at speeds up to 25–30 m/min, with quick changeover between different web widths and flange heights to meet diverse project demands.

Key Features & Advantages

· High-precision roll forming technology – Hardened and ground chromium-plated rollers guarantee tight dimensional tolerances (within ±0.3 mm) and minimize material distortion, even when using galvanized steel up to 1.2 mm thickness.

· Servo-driven hydraulic punching & cutting – Pre-punching and post-cutting stations are synchronized with the forming speed, eliminating secondary processing and reducing labor costs.

· User-friendly PLC control system – The touch-screen interface stores over 50 profile recipes, allowing for automatic length setting, hole positioning, and production counting with minimal operator intervention.

· Durable construction & low maintenance – Heavy-duty gearboxes, precision bearings, and automatic lubrication system extend service life, while quick-release tooling reduces downtime during size changes.

· Energy-efficient & quiet operation – Optimized motor and hydraulic unit lower power consumption by 15% compared to conventional models, with noise levels kept below 75 dB.

Why Choose Us

All-in-One Engineering Solutions

From initial concept to final production, we provide comprehensive support tailored to your needs.

Built to Last

Our machines are engineered for durability, delivering reliable performance over years of continuous operation.

Precision You Can Trust

Achieve consistent, micron-level accuracy in every product with our advanced roll forming technology.

Superior Materials

We use only premium-grade components to ensure strength, stability, and longevity.

Advanced Automation Systems

Equipped with cutting-edge electrical and control systems for enhanced efficiency and precision.

About us

Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
