C channel roll forming machine

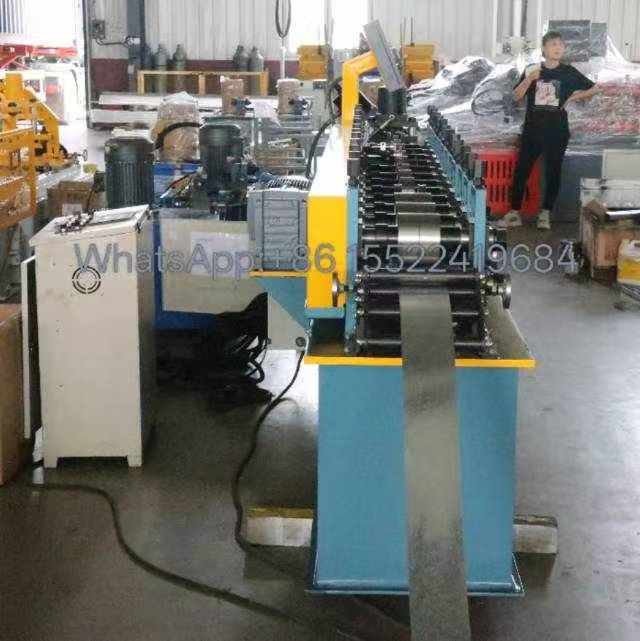

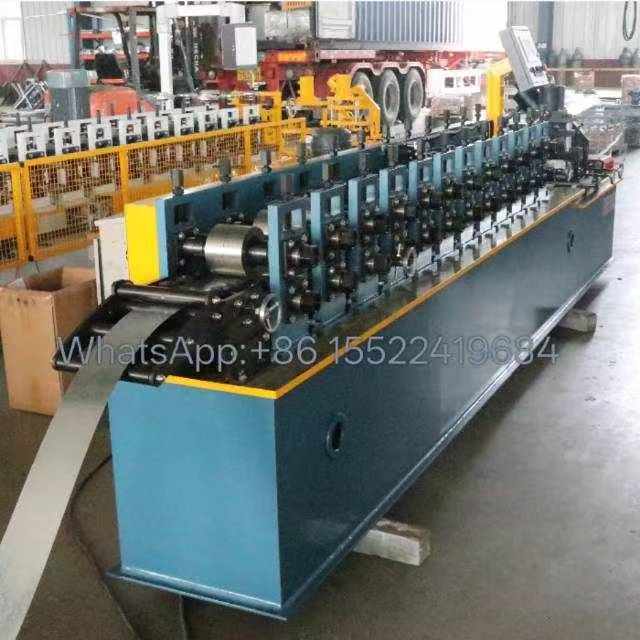

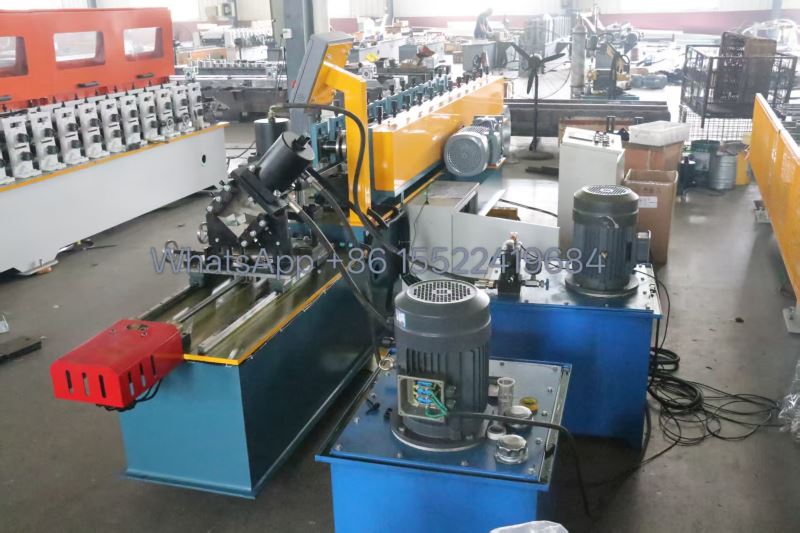

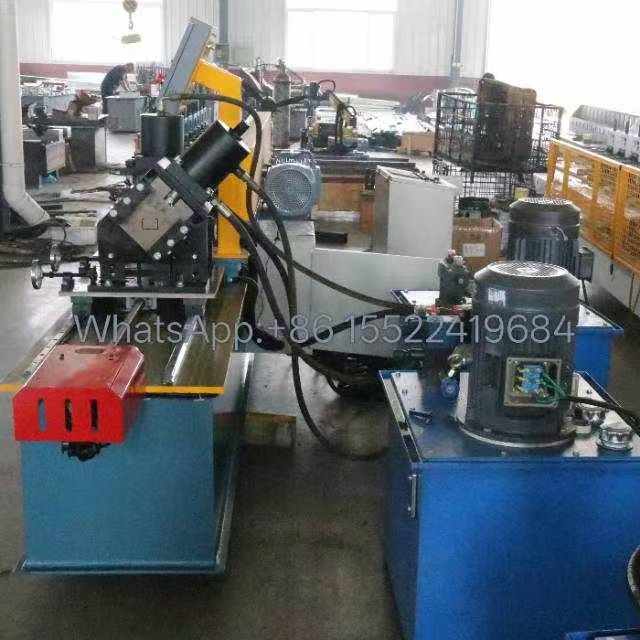

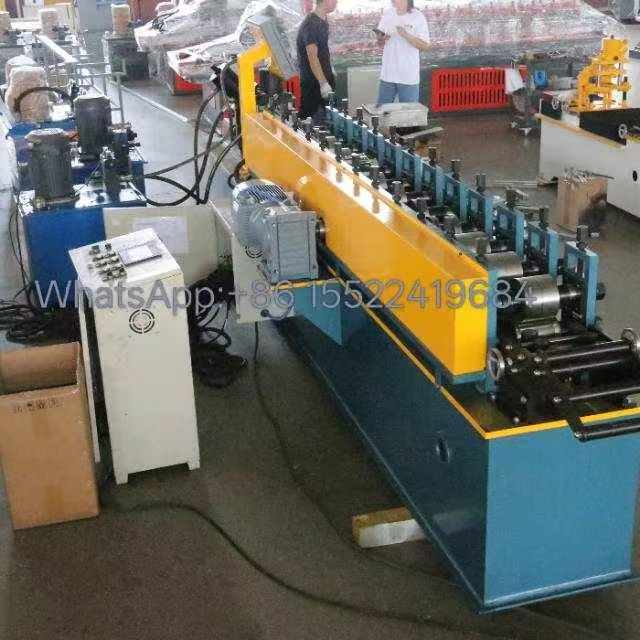

C-section stud roll forming machine is a specialized industrial equipment designed for the continuous cold roll forming of C-section light gauge steel studs. Renowned for its high efficiency, precision, and stability, it has become an indispensable core production machinery in modern lightweight steel structure buildings and interior decoration systems (such as ceilings and partition walls). Through a series of precision forming rollers, the machine progressively shapes coils of color-coated galvanized steel strip or other metal strips at room temperature into C-section stud products with specific cross-sectional dimensions.

Core Features & Advantages

1.  High Efficiency & Automated Production

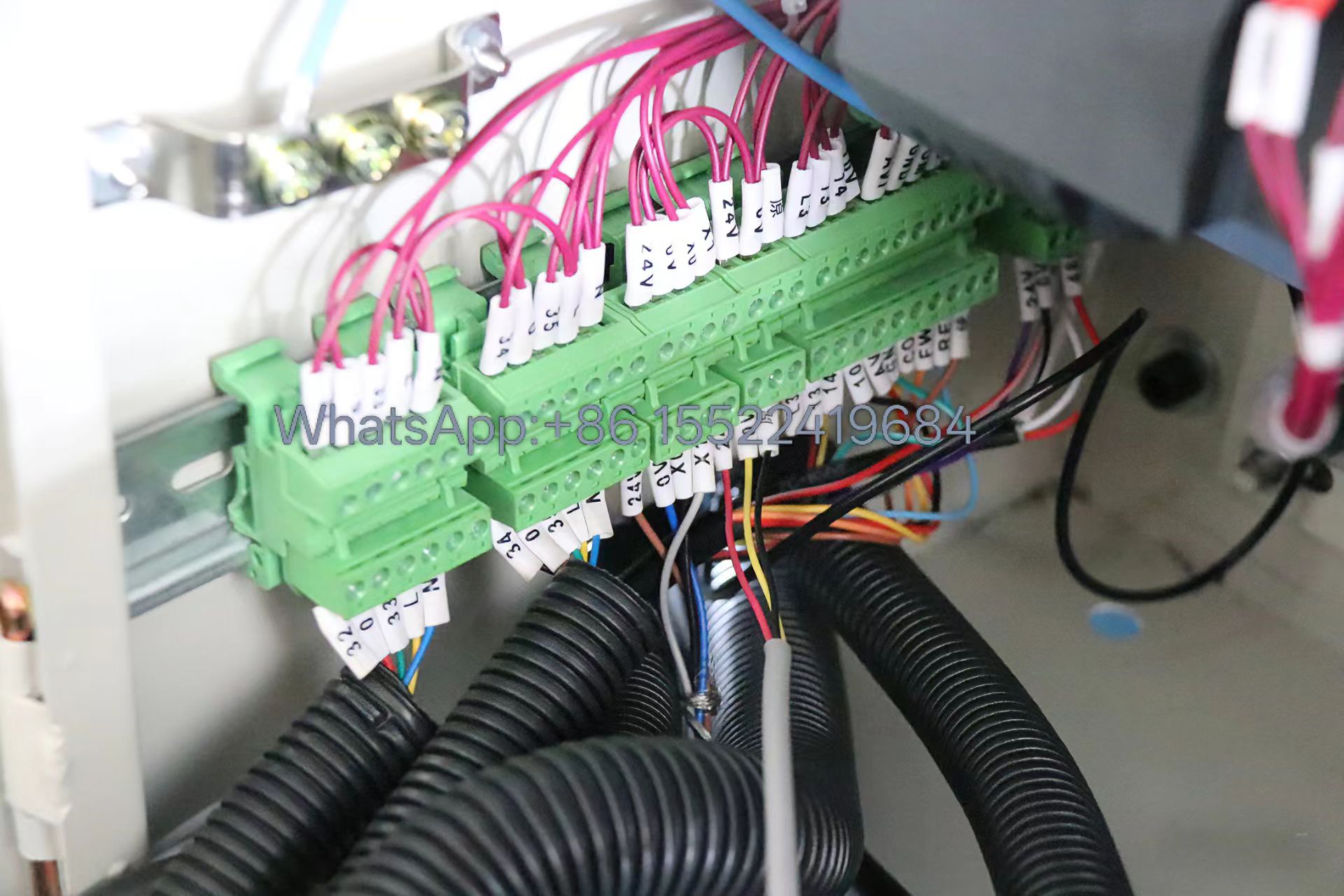

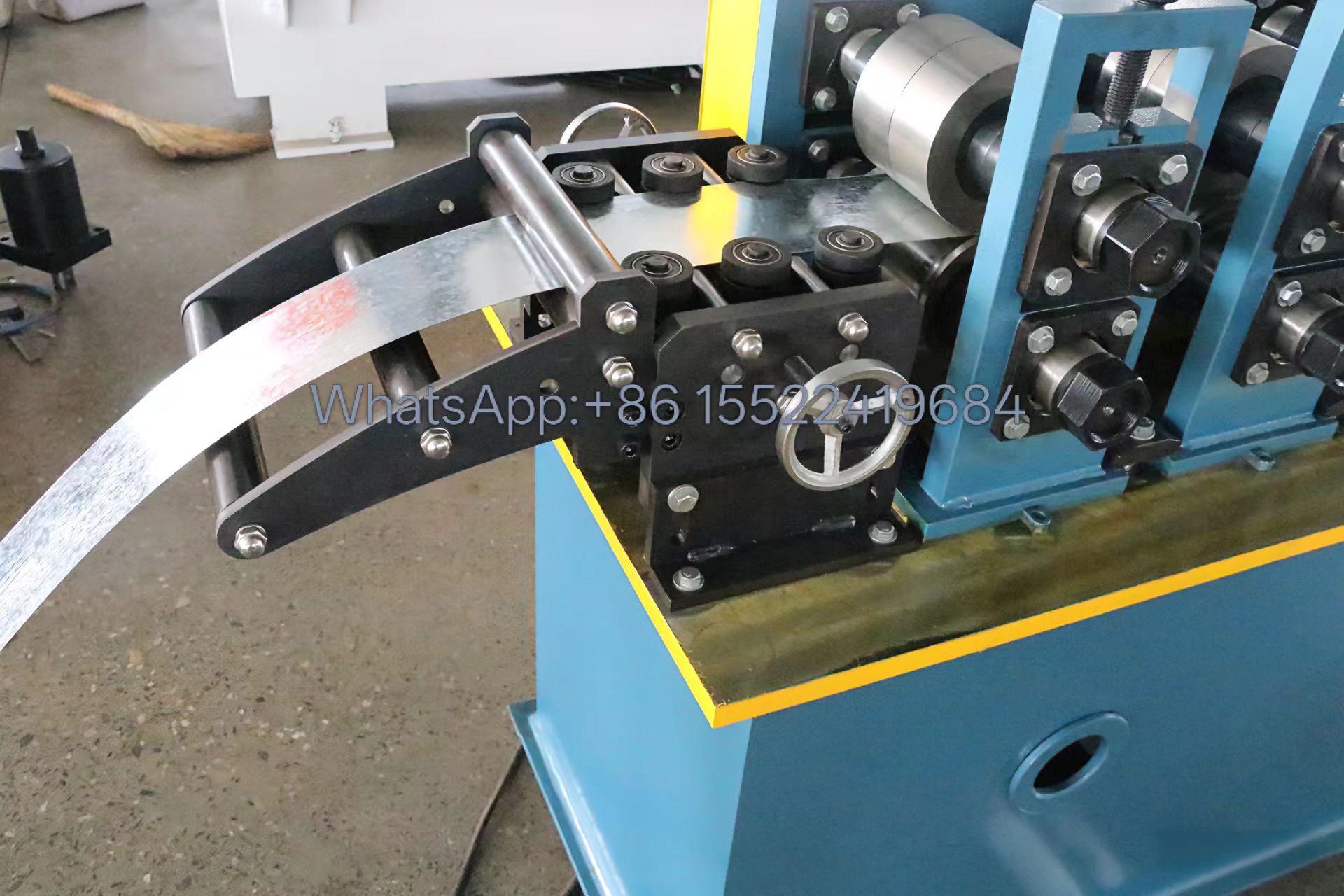

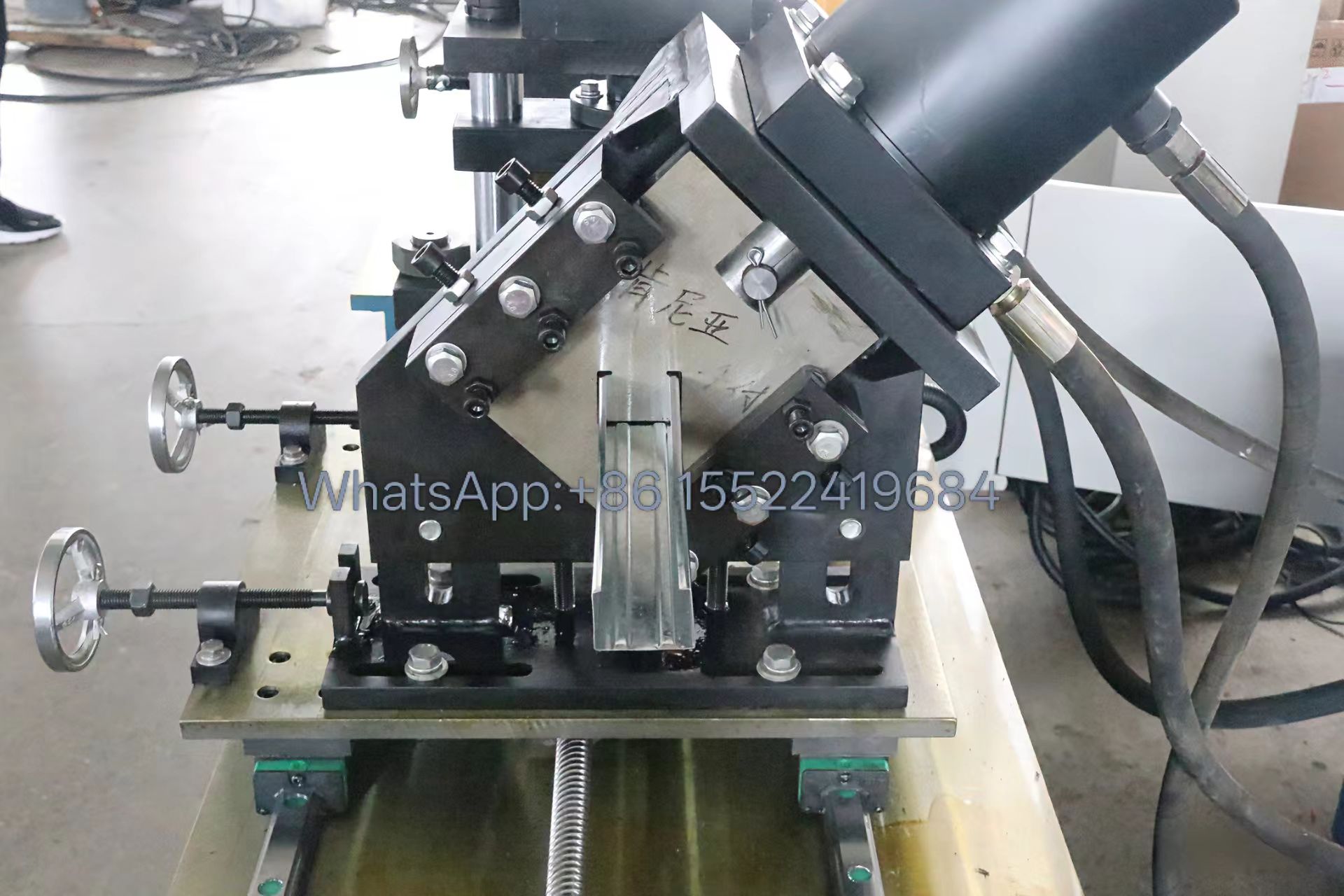

    Utilizes PLC (Programmable Logic Controller) for automatic control, enabling fully or semi-automated production from uncoiling, leveling, punching/notching, continuous roll forming, fixed-length cutting, to output.

     Adjustable production speed, significantly faster than traditional processing methods, greatly boosting output to meet the supply demands of large-scale projects.

Contact us to get a more favorable glazed tile making machine price!

2.  High Precision & Excellent Stability

     The core forming section employs high-quality alloy steel rollers, processed by precision CNC machining and heat treatment, ensuring dimensional accuracy at every forming stage.

    Robust machine structure and stable operation guarantee that the produced C-section studs have minimal dimensional tolerance, good straightness, and strong interchangeability, providing great convenience for subsequent construction and installation.

3.  Strong Flexibility

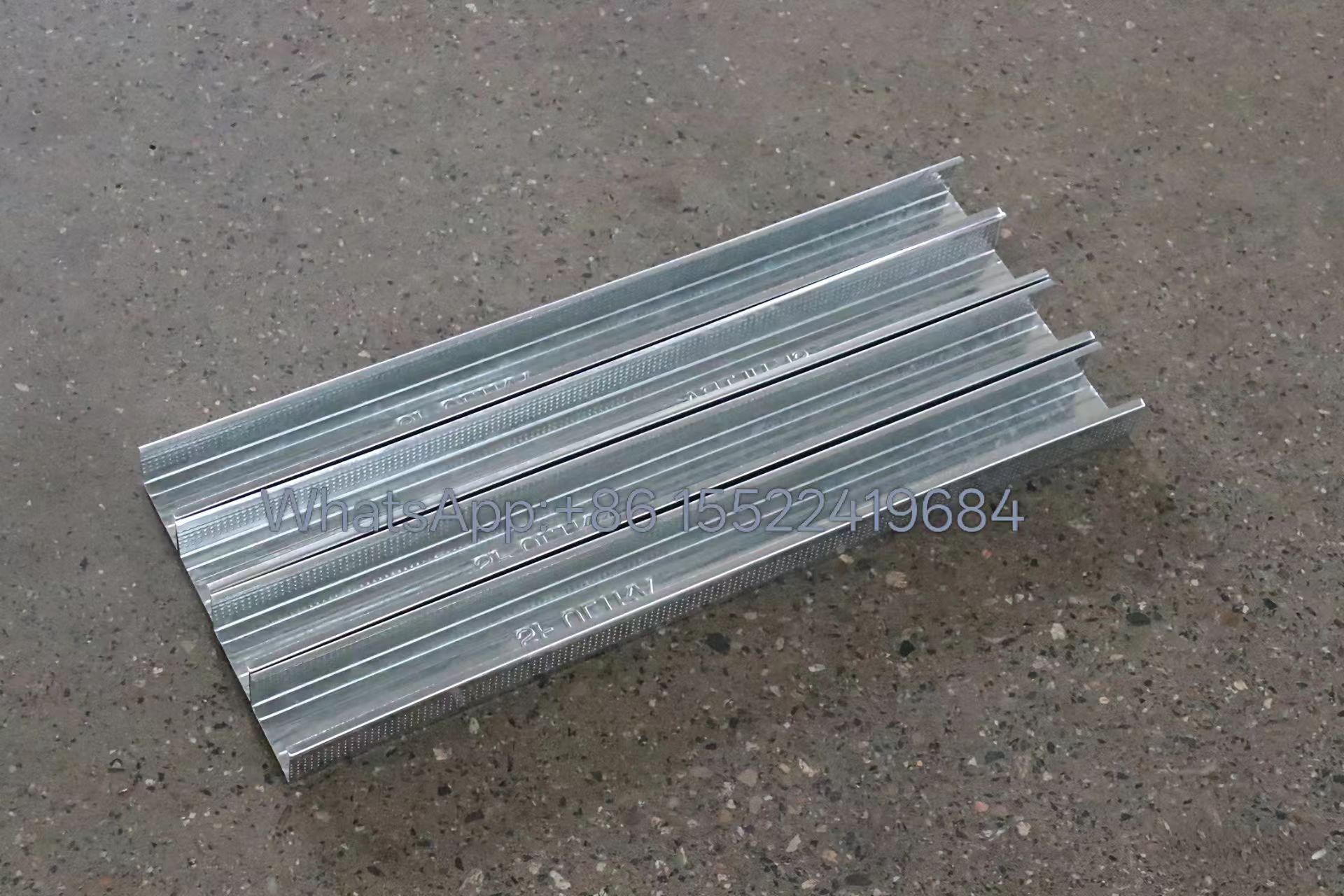

     Capable of producing multiple types of C-section studs (e.g., C50, C75, C100) with different heights, widths, and thicknesses using one host machine by replacing different roller molds, adapting to diverse market needs.

     Various functional units can be flexibly added according to customer requirements, such as online punching, marking, automatic bundling, etc., enabling customized production.

Contact us to get a more favorable glazed tile making machine price!

4.  Excellent Forming Quality

    The cold roll forming process does not damage the steel's galvanized layer or material properties, ensuring the stud's corrosion resistance and strength.

    The formed C-section studs have a smooth, flat surface free from scratches, clear contours, and superior mechanical properties.

5.  Cost Savings & Enhanced Profitability

    Automated production reduces dependence on manual labor, lowering labor costs.

    High material utilization rate and minimal waste effectively control production costs.

    The integrated production line reduces intermediate handling and secondary processing steps, significantly improving overall efficiency.

Why Choose Us

All-in-One Engineering Solutions
From initial concept to final production, we provide comprehensive support tailored to your needs.

Built to Last
Our machines are engineered for durability, delivering reliable performance over years of continuous operation.

Precision You Can Trust
Achieve consistent, micron-level accuracy in every product with our advanced roll forming technology.

Superior Materials
We use only premium-grade components to ensure strength, stability, and longevity.

 Advanced Automation Systems
Equipped with cutting-edge electrical and control systems for enhanced efficiency and precision.

About Us

Since 1996 year, Promax Group main products have evolved from a standard keel roll forming machine to a customized automated high speed keel roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
